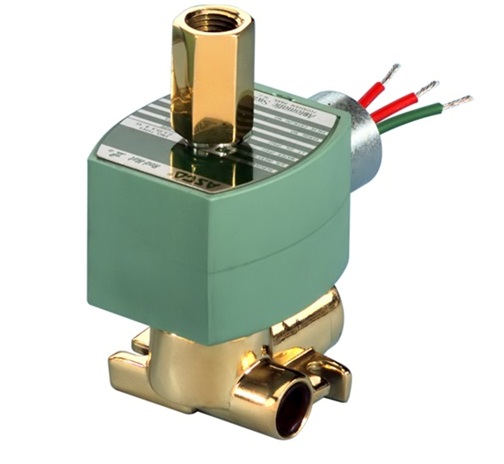

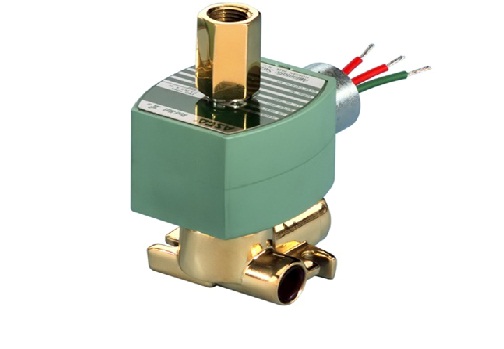

Van điện từ - 3 Way: 3/2 - ASCO Series 317

8317G035 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

95

Function:

3 way - 3/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

8317G035 120/60,110/50

General Information

Product Weight:

1.70 lb

Order Code:

20652

Shipping Weight:

1.79 lb

Kit Number:

314463

Listed In Catalog:

34

Operating Pressure Ratings:   PSI

Operating Air Pressure (Min-Max):

5-150

Operating Water Pressure (Min-Max):

5-150

Operating Oil Pressure (Min-Max):

10-95

Technical Information

Actuation Method

Solenoid

Body Material:

Brass

Coil Class:

FT

Coil Number:

238610-032-D

I&M Pressure Vessel:

V_5084_R4.pdf

I&M Solenoid:

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

125.00 F

Min Ambient Temperature:

32.00 F

Max Fluid Temperature:

180.00 F

Min Fluid Temperature:

32.00 F

Orifice Size:

3/32 in

Model Available:

8317G023 120/60,110/50

EF8317G035 120/60,110/50

EF8317G035 24/DC

EF8317G036 120/60,110/50

EF8317G307 24/DC

-------------------------------------
