Asco - Van điện từ-3 Way: 3/2-ASCO Series 320

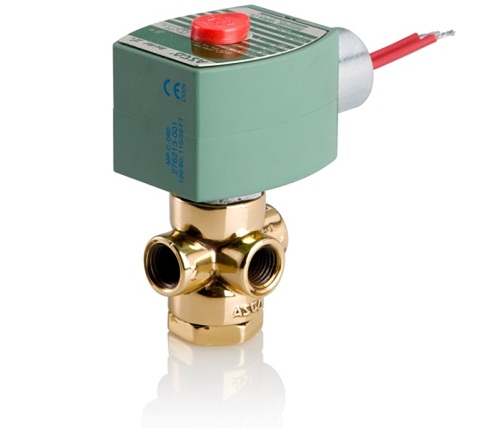

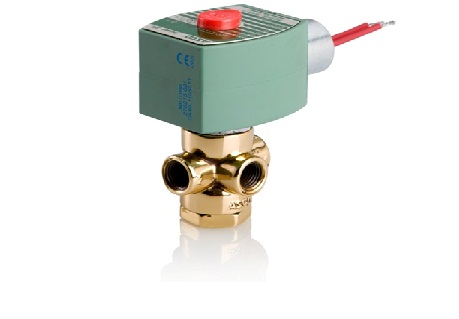

Van điện từ - 3 Way: 3/2 - ASCO Series 320

EF8320G184 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid - Direct Acting

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

150

Function:

3 way - 3/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

EF8320G184 120/60,110/50

General Information

Product Weight:

1.50 lb

Order Code:

20753

Shipping Weight:

1.59 lb

Kit Number:

302142

Listed In Catalog:

34

Operating Pressure Ratings:

PSI

Operating Air Pressure (Min-Max)

-150

Operating Water Pressure (Min-Max)

-150

Operating Oil Pressure (Min-Max)

-150

Technical Information

Actuation Method

Solenoid - Direct Acting

Body Material

Brass

Coil Class

FT

Coil Number

238614-032-D

I&M Pressure Vessel

V_5688_R4.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size

1/4

Max Ambient Temperature

125.00 F

Min Ambient Temperature

32.00 F

Max Fluid Temperature

200.00 F

Mounting Bracket(s)

OPTIONAL

Orifice Size

3/32 in

-------------------------------------
