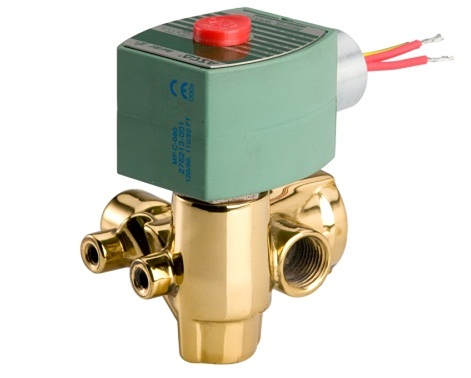

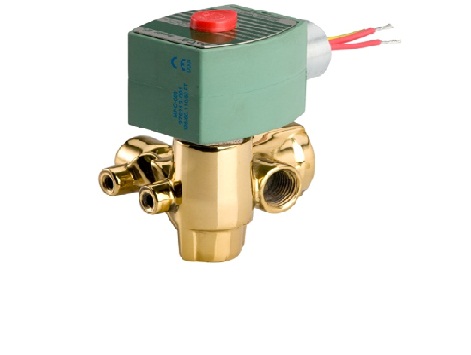

Asco - Van điện từ-3 Way: 3/2-ASCO Series 321

Van điện từ - 3 Way: 3/2 - ASCO Series 321

EF8321G001 120 / 60,110 / 50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

200

Function:

3 way - 3/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

EF8321G001 120 / 60,110 / 50

General Information:

Product Weight:

2.01 lb

Order Code:

20779

Shipping Weight:

2.09 lb

Catalog Page

Kit Number:

302925

Listed In Catalog:

34

Operating Pressure Ratings:    PSI

Operating Air Pressure (Min-Max):

10-200

Operating Water Pressure (Min-Max):

10-200

Operating Oil Pressure (Min-Max):

10-200

Technical Information

Actuation Method:

Solenoid

Body Material:

Brass

Coil Class:

FT

Coil Number:

238214-032-D

I&M Pressure Vessel:

V_5417_R4.pdf

I&M Solenoid:

V_6583.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

125.00 F

Min Ambient Temperature:

32.00 F

Max Fluid Temperature:

180.00 F

Orifice Size:

9/32 in

Model Available:

EF8321G001 24/DC

EF8321G002 120/60,110/50

EF8321G002 24/DC

8321G002 120/60,110/50

-------------------------------------
