Asco - Van điện từ-4 Way: 4/2-ASCO Series 344

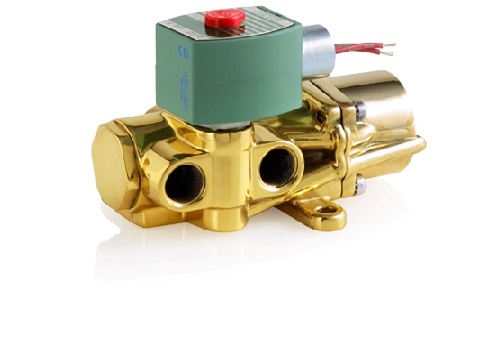

Van điện từ - 4 Way: 4/2 - ASCO Series 344

EF8344G072 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid - Direct Acting

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

150

Function:

4 way

Pipe Size:

3/8

Catalog Number:

EF8344G072 120/60,110/50

General Information

Product Weight:

9.59 lb

Order Code:

20859

Shipping Weight:

9.68 lb

Kit Number:

302711

Operating Pressure Ratings: PSI

Operating Air Pressure (Min-Max)

10-150

Operating Water Pressure (Min-Max)

10-125

Operating Oil Pressure (Min-Max)

25-125

Technical Information

Actuation Method:

Solenoid - Direct Acting

Body Material:

Brass

Coil Class:

FT

Coil Number:

238614-032-D

I&M Pressure Vessel

V_5770.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

3/8

Max Ambient Temperature:

125.00 F

Min Ambient Temperature:

32.00 F

Max Fluid Temperature:

180.00 F

Orifice Size:

3/8

Model Available:

8344G074 120/60,110/50

8344G074MO 120/60,110/50

EF8344G074 120/60,110/50

-------------------------------------
