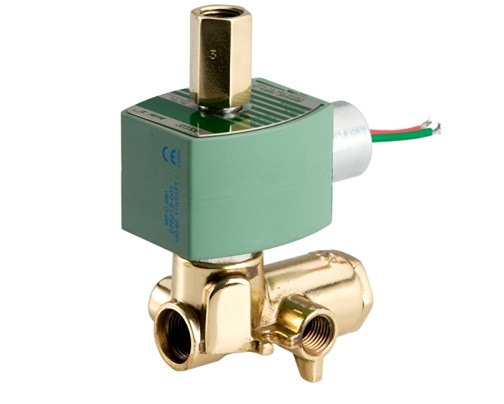

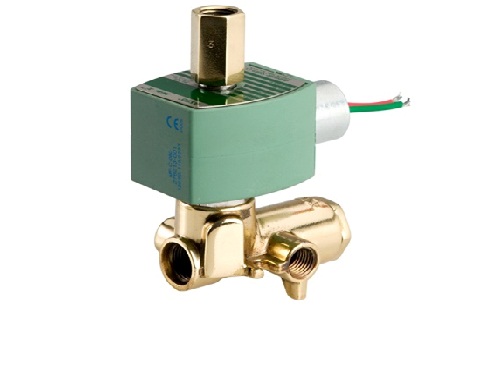

Asco - Van điện từ-4 Way: 4/2-ASCO Series 345

Van điện từ - 4 Way: 4/2 - ASCO Series 345

8345G001 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

150

Function:

4 way

Pipe Size:

1/4

Catalog Number:

8345G001 120/60,110/50

General Information:

Product Weight:

2.14 lb

Order Code:

20879

Shipping Weight:

3.24 lb

Kit Number:

314453

Listed In Catalog:

34

Operating Pressure Ratings PSI:

Operating Air Pressure (Min-Max):

10-150

Operating Water Pressure (Min-Max):

10-150

Operating Oil Pressure (Min-Max):

10-150

Technical Information:

Actuation Method:

Solenoid

Body Material:

Brass

Coil Class:

FT

Coil Number:

238610-032-D

I&M Pressure Vessel:

V_9809.pdf

I&M Solenoid:

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

125.00 F

Min Ambient Temperature:

32.00 F

Max Fluid Temperature:

180.00 F

Min Fluid Temperature:

32.00 F

Orifice Size:

1/16 in

Model Available:

8345G001 24/DC

8345G001MO 120/60,110/50

8345G001V 120/60,110/50

8345H003 120/60,110/50

8345H003V 120/60,110/50

-------------------------------------
