VIBRATING LEVEL SWITCH, Model: MVL-110

Liên hệ Còn hàng

VIBRATING LEVEL SWITCH

Model: MVL-110





Level Detection for Fine Powder Material

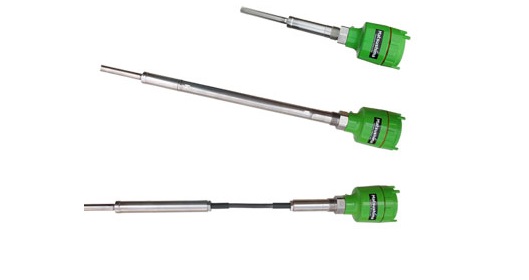

Vibrating Level Switch MVL Series
Product type: Probe (standard), Cable hanging, Pipe
Power Supply: AC/DC22 – 264V 50/60Hz
Power consumption: 4.7W (AC), 1.8W (DC)
Mounting: R1 thread
L-length:
  Probe (standard) 225mm
  Cable hanging   600mm – 20000mm
  Pipe       350mm – 2000mm

Bulk density: ≥ 0.02g/cm3
Output signal: 1C contact output

Vibrating level switch vibrates the probe with a certain frequency by the piezoelectric element, and monitors as constant amplitude voltage with electronic circuit. The amplitude voltage is substantially reduced as the probe is constrained by powder and granular materials. This switch detects this variation in the amplitude voltage and outputs the contact signal. It can be widely applied from fine powder to granular materials including grain as a storage level switch.
