CT TRANSMITTER Model: M5CT

CT TRANSMITTER

Model: M5CT

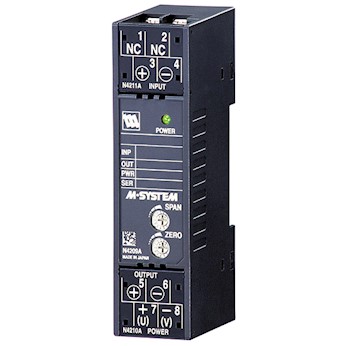

CT TRANSMITTER

Model: M5CT - 1A - M

Functions & Features
• Converts an alternating current from a current
transformer into a standard process signal
• True RMS sensing
• High-density mounting
• Power LED


MODEL: M5CT-[1][2]-[3][4]

[1] INPUT
Current
1: 0 – 1 A AC (Input burden ≤ 0.1 VA)
5: 0 – 5 A AC (Input burden ≤ 0.5 VA)

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)
Z: Specify current (See OUTPUT SPECIFICATIONS)
Voltage
4: 0 – 10 V DC (Load resistance 1000 Ω min.)
5: 0 – 5 V DC (Load resistance 500 Ω min.)
6: 1 – 5 V DC (Load resistance 500 Ω min.)
4W: -10 – +10 V DC (Load resistance 8000 Ω min.)
5W: -5 – +5 V DC (Load resistance 4000 Ω min.)
0: Specify voltage (See OUTPUT SPECIFICATIONS)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,47 – 66 Hz)
(CE not available)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[4] OPTIONS
blank: none
/Q: With options (specify the specification)
