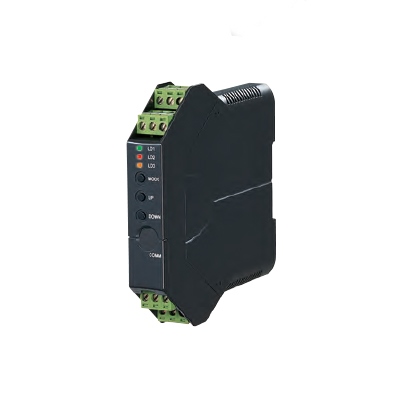

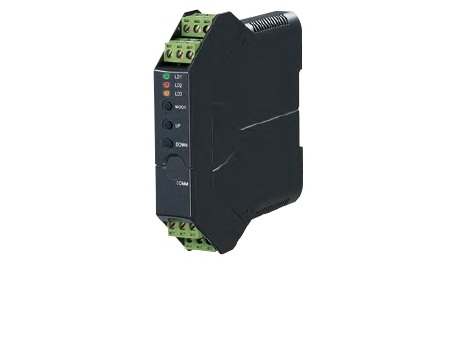

CURRENT LOOP SUPPLY Model: M3DY

CURRENT LOOP SUPPLY

Model: M3DY

CURRENT LOOP SUPPLY

Model: M3DY - A - R

Functions & Features
• Powers a two-wire transmitter with 4-20 mA
DC output and galvanically isolates its output signal
• High-density mounting available
• Power indicator LED
• Smart transmitter available

MODEL: M3DY–[1]–[2][3]

INPUT
Current
4 – 20 mA DC (Input resistance approx. 250 Ω)

[1] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)
Voltage
4: 0 – 10 V DC (Load resistance 10 kΩ min.)
5: 0 – 5 V DC (Load resistance 5000 Ω min.)
6: 1 – 5 V DC (Load resistance 5000 Ω min.)

[2] POWER INPUT
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
Universal
AD: 100 – 240 V AC / 24 – 240 V DC (universal)
(Operational voltage range 90 - 264 V AC, 47 - 66 Hz / 21.6 - 264 V DC, ripple 10 %p-p max.)

[3] OPTIONS
blank: none
/Q: With options (specify the specification)
