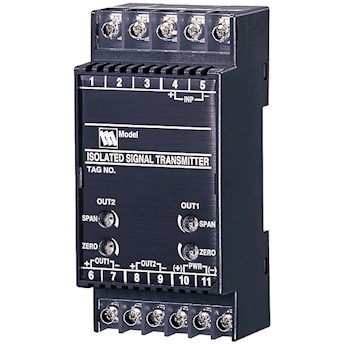

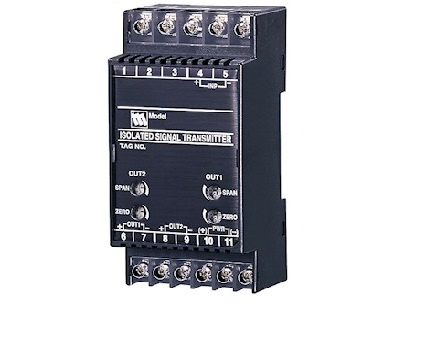

CURRENT LOOP SUPPLY Model: W5DY

Liên hệ Còn hàng

Hãng Sản Xuất: M-system

Xuất Xứ: Nhật Bản

Tình Trạng: Còn Hàng

CURRENT LOOP SUPPLY

Model: W5DY



CURRENT LOOP SUPPLY

Model: W5DY - AA - M

Functions & Features
• Powers a 4 – 20 mA DC current loop
• Two independent output ranges
• Four-way isolation (input to output 1 to output 2 to power)
• Fast response type available
• High-density mounting





MODEL: W5DY-[1][2]-[3][4]



INPUT
Current
4 – 20 mA DC (Input resistance 249.5 Ω)


[1] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)
B: 2 – 10 mA DC (Load resistance 1100 Ω max.)



[2] OUTPUT 2
Same range availability as Output 1
Y: None


[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(CE not available)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)
(CE not available)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
(CE not available)


[4] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Other Options
blank: none
/Q: Option other than the above (specify the specification)
