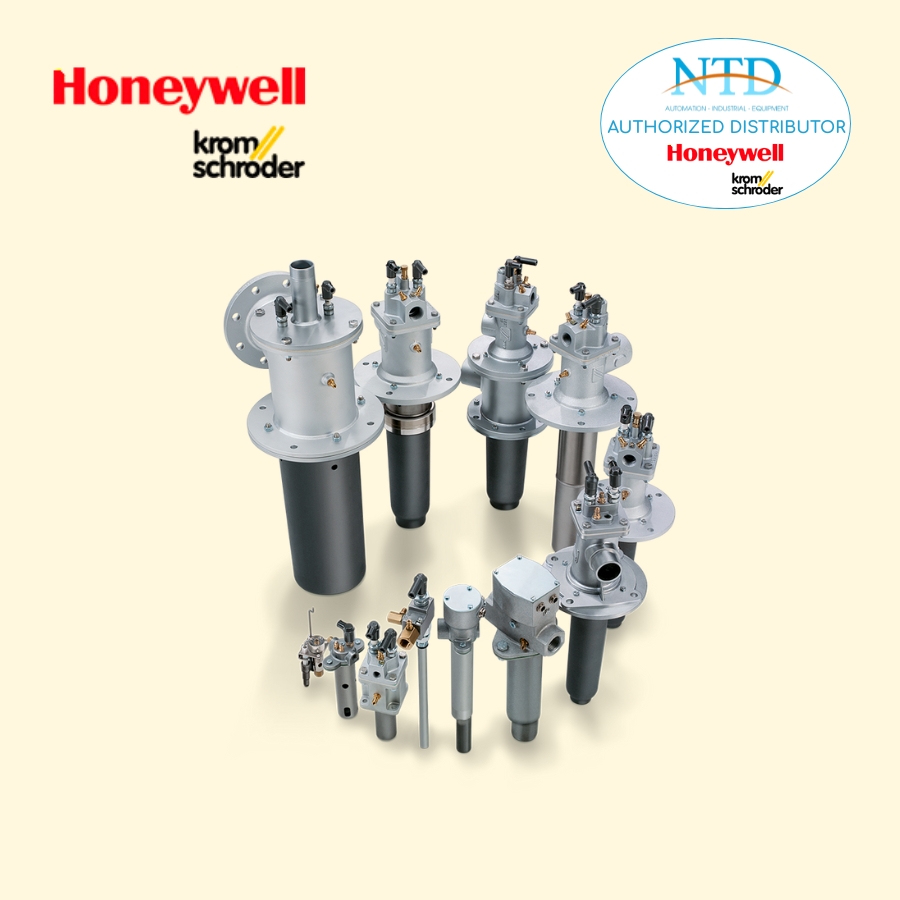

Đầu đốt Pilot burners and burners

Luôn đem đến sự an toàn, giá cả phải chăng và có độ tin cậy cao cho doanh nghiệp. Honeywell Kromschröder là một trong các nhà sản xuất nổi tiếng về lò công nghiệp.

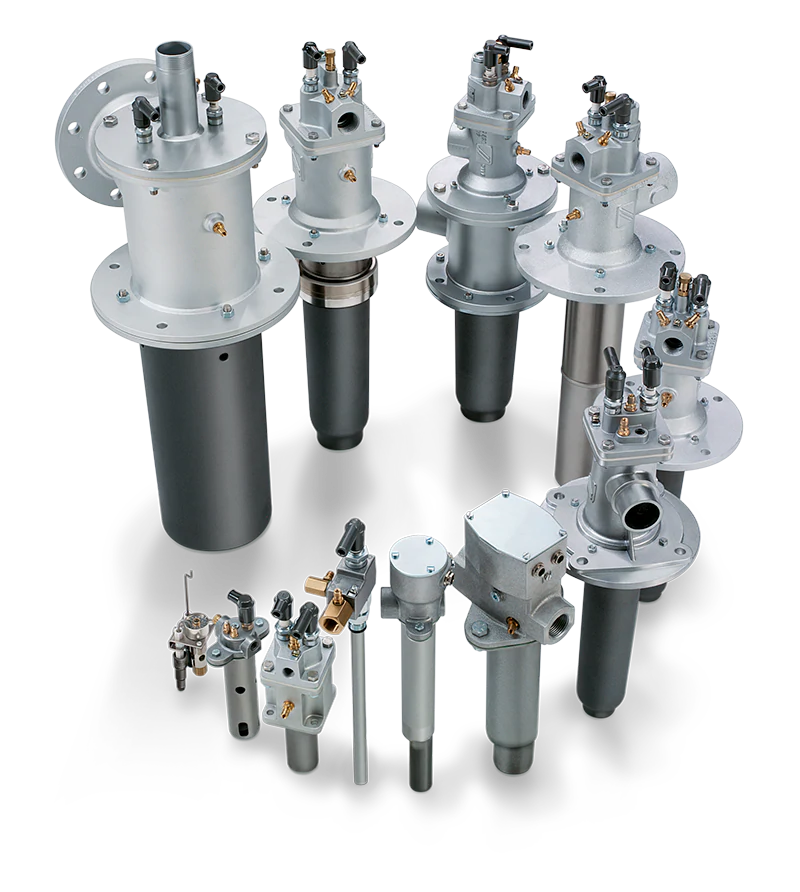

Đầu đốt Pilot burners and burners (Đầu đốt và đầu đốt thí điểm) bao gồm:

+ Burners for gas BIC, BICA, ZIC
+ Burners for gas BIO, BIOA, ZIO
+ Burner with integrated recuperator BICR
+ Forced draught burners PBG Europe
+ Low NOx burner BIC..M
+ Self recuperative burners ECOMAX
+ Annular excess air burners
+ Pot burner
+ Pilot burners ZAI
+ Pilot burner ZIO 40
+ Pilot burners ZKIH
+ Pilot burners ZMI
+ Burners for gas BBG
+ Burners for gas TRIOX
+ Excess air burner BIC..L

Trong đó:

Burners for gas BIC, BICA, ZIC

Burners with cast steel housing (BIC), aluminium housing (BICA) or steel-plate housing, connection for ceramic tube provided.

Burner size: 50 to 200,
capacity: 10 to 1000 kW,
flame shape: normal flame or long, soft flame,
gas type: natural gas, town gas or LPG,
length of burner tube: depending on ceramic tube,
connection:
gas: thread,
air: thread or flange (BICA: tube connection).

The following versions are available: burner with integrated ignition lance.

Burners for gas BIO, BIOA, ZIO

Burners with cast steel housing (BIO), aluminium housing (BIOA) or steel plate housing (ZIO), steel burner tube.

Burner size: 50 to 320,
capacity: 40 to 5000 kW,
flame shape: normal flame, long, soft flame or short, flat flame,
gas type: natural gas, town gas or LPG,
length of burner tube:50 to 1000 mm,
connection:
gas: thread,
air: thread or flange (BIOA: tube connection).

The following versions are available:
burner with integrated ignition lance.

Burner with integrated recuperator BICR

The burners with integrated recuperator BICR are used for direct or indirect heating of furnace systems.

Burner size: 65/50 to 100/80,
capacity: 21 to 82 kW,
gas type: natural gas or LPG.

Forced draught burners PBG Europe

Forced draught burners with attached gas train and BCU 370 control unit.
4 sizes from 70 to 230 kW
2 gas train types: with VAG for air/gas ratio control or with LFC for gas control with constant air volume
Direct ignition and monitoring
Gas types: natural gas, LPG
Control: modulating or staged
Control range: 1: 0 with VAG or > 1:20 with LFC

Low NOx burner BIC..M

Low NOx burner BIC..M Burner with cast steel housing, with ceramic tube connection.
Burner size: 50 to 140,
capacity: 10 to 360 kW,
use: for menox low NOx operation for cold air and hot air up to 450°C,
gas type: natural gas as well as coke oven gas, town gas or liquefied gases upon consultation,
burner length: 300 to 1200 mm,
connection:
gas connection: thread,
air connection: thread.
The following versions are available: housing with internal insulation.

Self recuperative burners ECOMAX

Burners with integrated recuperator for direct or indirect heating of furnace systems.
3 versions: with ceramic burled tube recuperator, cast steel ribbed tube recuperator or flat tube recuperator
7 sizes from 25 to 500 kW
Direct ignition and monitoring
Gas type: natural gas, town gas, LPG or LCV gas
Flame velocity: 120 to 150 m/s
Control: ON/OFF

Annular excess air burners

Excess air burners with split-ring technology, burners with cast steel housing, connection for ceramic
tube provided.
Burner size: 65 and 100,
capacity: 50 to 200 kW,
flame shape: normal flame,
gas type: natural gas, town gas or LPG,
length of burner tube: depending on ceramic tube,
connection:
gas: thread,
air: thread.

The following versions are available:
burner with integrated ignition lance.

Pot burner

Aluminium or cast steel housing, connections for ceramic tubes provided, with separate process air connection.

Burner size: 50 to 80,
capacity: 10 to 105 kW,
flame shape: normal flame,
gas type: natural gas, town gas or LPG
length of burner tube: depending on ceramic tube,
connection: thread.

Pilot burners ZAI

Thermo pilot burner for safe ignition of atmospheric gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD.

Capacity: approx. 3 kW,
gas type: natural gas or propane.

* Danh mục sản phẩm Pilot burners ZAI Kromschroder:

Pilot burner ZIO 40

Pilot burner with forced air supply for safe ignition of gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD.

Capacity: 20 kW,
gas type: natural gas, town gas or LPG,
length of burner tube: 100 to 1000 mm,
connection: thread.

Pilot burners ZKIH

Pilot burner with forced air supply for safe ignition of gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD.
Capacity: 2 to 7 kW,
gas type: natural gas, town gas or LPG,
length of burner tube: 150/100 to 1000/100 mm,
connection: thread.

Pilot burners ZMI

Pilot burner with one ignition/monitoring electrode for safe ignition of gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD, with forced air supply.

Capacity: 0.8 to 3.4 kW,
gas type: natural gas, town gas or LPG,
length of burner tube: 150 to 1000 mm,
connection: thread.

Burners for gas BBG

The burners BBG are suitable for use in industrial furnaces and firing systems in the iron and steel industries in the precious, non-ferrous and light metal sector as well as for ore dressing. In addition, they can be used in the plastics, fibre and paper industries. Burners BBG can also be used in thermal incineration installations, as well as in driers and hot-air generators.
Gas burners for open fired applications.
Diverse possible applications thanks to wide capacity range of up to 7150 kW (27 MBTU/h)

Burners for gas TRIOX

The burners TriOx are suitable for use in industrial furnaces and firing systems in the iron and steel industries in the precious, non-ferrous and light metal sector.
They are ideal for heating furnaces in the steel industry, aluminium smelting furnaces and other high-temperature applications requiring ultra low NOX emissions.

Diverse possible applications thanks to wide capacity range of up to 5500 kW (21 MBTU/h)

Excess air burner BIC..L

For all applications requiring precise temperature control and consistent product quality. The BIC..L burner is perfectly designed for use in the tunnel kilns and intermittent systems as used in the ceramics industry. A single burner type enables you to follow all the temperature profile requirements of the kiln. Thanks to the high excess air capability of up to approx. 1500% high flue gas temperatures of up to approx. 100°C can be reached in near-stoichiometric burner operation with maximum excess air. With reliable ignition over the entire burner output range this accommodates the furnace operator’s wish for a simple structured gas/air control.

Burner size: 80, 100 and 140,
capacity: 75, 150 and 300 kW,
gas type: natural gas or LPG,
length of burner tube: depending on ceramic tube,
connection: thread or flange.

Ngoài ra, Excess air burner BIC..L có khả năng đánh lửa đáng tin cậy, tốc độ ngọn lửa đầu ra cao. Trọng lượng nhẹ, thiết kế theo mô-đun, dễ dàng lắp đặt, bảo trì và sữa chữa . Hiện nay, đầu đốt này thường được sử dụng trong ngành Ceramic.
