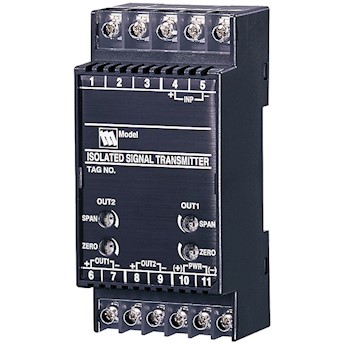

FREQUENCY TRANSMITTER Model: W5PA

FREQUENCY TRANSMITTER

Model: W5PA

FREQUENCY TRANSMITTER

Model: W5PA - C4AA - M

Functions & Features
• Converts the output from a pulse-type transducer into two
isolated process signals
• Two independent output ranges
• Four-way isolation (input to output 1 to output 2 to power)
• High-density mounting
• CE marking for 24 V power

MODEL: W5PA-[1][2][3][4]-[5][6]

[1] INPUT
A1: Open collector
A2: Mechanical contact
C: 5 V pulse (sensitivity 2 V)
D: 12 V/24 V pulse (sensitivity 5 V)

[2] EXCITATION
4: 12 V DC / 30 mA
7: 24 V DC / 12 mA

[3] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)

[4] OUTPUT 2
Same range availability as Output 1
Y: None

[5] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(CE not available)

[6] OPTIONS
blank: none
/Q: With options (specify the specification)
