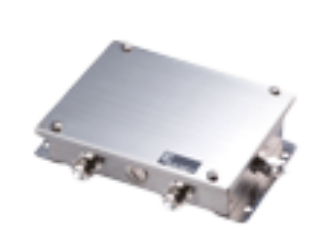

SUMMING BOX LCBX-4

SUMMING BOX

Functions & Features
• Dustproof and waterproof type
• Stainless
• Up to 4 load cells can be connected

MODEL: LCBX-4

• Code number: LCBX-4


Structure: Water-resistant type (Top cover with neoprene sponge packing)
Body material: Stainless
Surface treatment: Hairline
Summing points: Max. 4
Terminal: 7P M3
Applicable cable: Cable gland M20 x 1.5
(Compatible with cables with diameters of 5 to 13 mm)


Summing board: With remote sensing terminal
Output adjustment function: Adjustable by trimmer potentiometer after cutting the jumper line. (Output adjustment function does not work at factory setting.)
Summing resistance: 500Ω of resistor is equipped in series on each of the output terminals for the load cell.


Safe temperature range: -10 to +75 ℃ (14 to 167 °F)
Weight: 1.8 kg (4.0 lb)

--------------------
