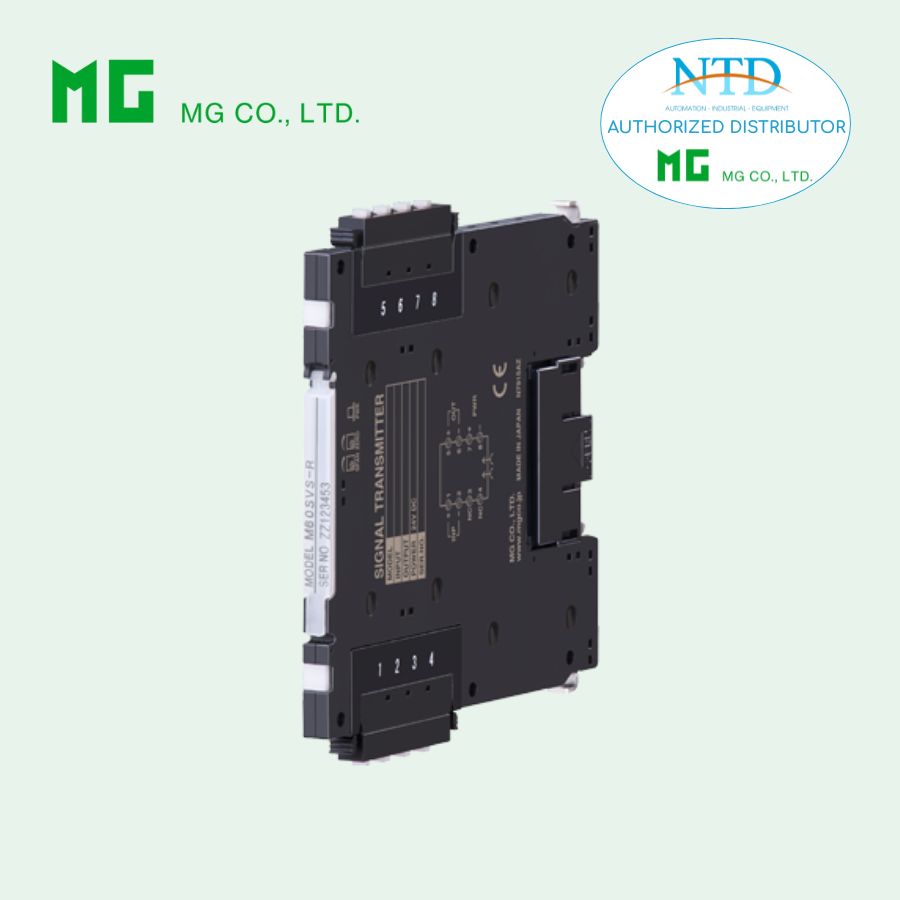

M60SWVS SIGNAL TRANSMITTER

Liên hệ Còn hàng

M60SWVS  SIGNAL TRANSMITTER
(field-configurable, two isolated outputs)
MÁY PHÁT TÍN HIỆU M60SWVS
Functions & Features
• Converts DC input from a sensor into a standard process signal
• Output range and response time selectable with DIP SW
• Power connector for interconnecting modules and collectively supplying power
• Spring clamp terminal connection for easy wiring
• 6-mm wide ultra-slim design
• Low profile allows mounting in a 120-mm deep panel
• High-density mounting
• Power indicator LED

MODEL: M60SWVS-R[1]

ORDERING INFORMATION
• Code number: M60SWVS-R[1]
Specify a code from below for [1].
  (e.g. M60SWVS-R/Q)
• Specify the specification for option code /Q
  (e.g. /C01)
• Default at shipment
  Input range: 4 – 20 mA DC
  Output 1 range: 4 – 20 mA DC
  Output 2 range: 4 – 20 mA DC
  Response time: Standard response

INPUT – Field-selectable
Current
4 – 20 mA DC (Input resistance 50 Ω)
0 – 20 mA DC (Input resistance 50 Ω)
Voltage
0 – 10 V DC (Input resistance 200 kΩ min.)
2 – 10 V DC (Input resistance 200 kΩ min.)
0 – 5 V DC (Input resistance 100 kΩ min.)
1 – 5 V DC (Input resistance 100 kΩ min.)

OUTPUT 1 – Field-selectable
Current
4 – 20 mA DC (Load resistance 300 Ω max.)
0 – 20 mA DC (Load resistance 300 Ω max.)
Voltage
0 – 5 V DC (Load resistance 5000 Ω min.)
1 – 5 V DC (Load resistance 5000 Ω min.)

OUTPUT 2 – Field-selectable
Current
4 – 20 mA DC (Load resistance 300 Ω max.)
0 – 20 mA DC (Load resistance 300 Ω max.)
Voltage
0 – 5 V DC (Load resistance 5000 Ω min.)
1 – 5 V DC (Load resistance 5000 Ω min.)

POWER INPUT
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[1] OPTIONS
blank: none
/Q: Options other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS
Connection
Input and output: Spring clamp terminal
Power input: Via the power connector or the spring clamp terminal
Applicable wire size: 0.2 to 1.5 mm2, stripped length 8 mm
Housing material: Flame-resistant resin (black)
Isolation: Input to output 1 to output 2 to power
Zero adjustment: -2 to +2 % (front)
Span adjustment: 98 to 102 % (front)
Adjustable individually for each output 1 and output 2.
Power LED: Green LED turns on when the power is supplied.

INPUT SPECIFICATIONS
■ DC Current: Input resistor incorporated

INSTALLATION
Power consumption: 0.7 W max.
Power input: 3 A (Total current consumed by the interconnected signal conditioners must be 3 A or less.)
Operating temperature: -20 to +55°C (-4 to +131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: DIN rail
Weight: 65 g (2.3 oz)

PERFORMANCE in percentage of span
Accuracy: ±0.1 %
I/O setting accuracy: ±0.2 %
Temp. coefficient: ±0.01 %/°C (±0.006 %/°F)
Response time (0 – 90 %): selectable with DIP SW
Standard: ≤ 500 msec.
Fast: ≤ 5 msec.
Line voltage effect: ±0.1 % over voltage range
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @1 minute
(input to output 1 to output 2 to power to ground)

STANDARDS & APPROVALS
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive
  EN 50581

EXTERNAL VIEW
Refer to the instruction manual for the setting procedure.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
