MSRPAC-2010

PC Recorder Series

PC RECORDER SOFTWARE PACKAGE

Functions & Features
• Industrial recorder on Windows based PC
• MSR128-V6: 128-point analog/discrete & totalizied counter input recording at 0.5 sec. sampling cycle
• MSR128LS, MSR128LV: 8-point analog signal recording at max. 50 msec. sampling cycle
• Recorded data is exportable to other Windows applications in CSV format
• Trigger recording function: Preset number of samples both before and after the trigger point can be recorded
• Limit alarms visually confirmed on the screen with indicators and on the alarm history view
Application Examples
• System start-up data recording in conjunction with the R1M-GH2 (T/C and mV/V inputs) module
• Remote data recording via Modbus modules


MODEL: MSRPAC-2010

ORDERING INFORMATION

• Code number: MSRPAC-2010

RELATED PRODUCTS

Modbus Communication Devices
• PC recorder (model: R1M, R2M, RZMS, RZUS Series)
• Remote I/O (model: R3, R5, R6, R7 Series)
• Paperless recorder (model: 73VR1100, 73VR21x, 73VR3100) *1
• Multi power monitor (model: 53U, 54U) *2
• Ethernet tower light (model: IT60RE, IT40SRE, IT50SRE, IT60SRE) *1
*1. Not usable with the MSR128LS or MSR128LV.
*2. Use 53U or 54U with Modbus interface.

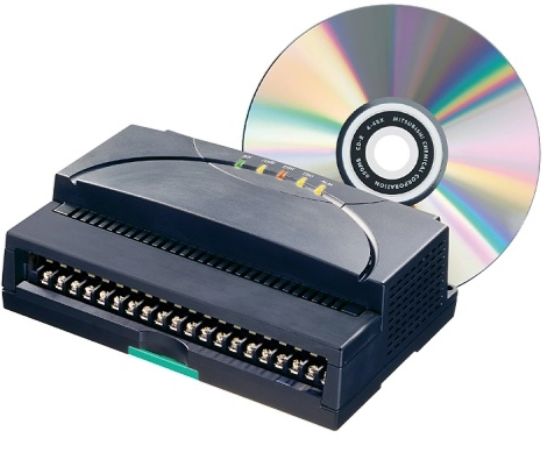

PACKAGE INCLUDING...

• CD............................................. (1)
- 128-point PC Recorder Software
Model: MSR128-V6, MSR128LS and MSR128LV
- 128-point PC Recorder Software
Model: MSR128-V1, Chinese version
- Instruction manuals for each software program

DATA INPUT INTERFACE

Modbus RTU interface: Connects to RS-232-C
(COM1 through COM5) via an RS-485/ RS-232-C converter (via USB for model: RZUS); 38.4 kbps
Modbus/TCP interface: 100 Mbps LAN interface compatible with Windows

SYSTEM REQUIREMENTS (provided by the user)

FUNCTIONS

■ MSR128-V6 (128-point PC Recorder Software)
Sampling rate
High speed mode: 100 msec. (with R3-NE1 only)
Normal mode: 500 msec. (Normal-mode sampling rate may not be achieved depending upon the number of connected modules. Please contact us for details.)
[Examples]
R1M-GH2: 500 msec. up to 6 modules (connected via COM port, without trigger setting)
RZMS-U9: 500 msec. up to 3 modules (connected via COM port, without trigger setting)
R3-NE1: 500 msec. up to 64 channels, 1 station

Storing conditions
Continuous recording: Uses Start/Stop control button on the screen.
Conditional recording: Uses one of the 128-point signals to trigger recording; stores data when the preset condition is true (e.g. an analog input exceeding Hi alarm setpoint).
Defined time recording: Stores data at a specific time for a specified time duration. One time or everyday storing selectable.
External trigger recording: Uses an external contact signal to start “Event” recording; specifies number of samples both before and after the trigger condition is true (max. 3600 samples respectively).

Storing interval: Specifies the time interval (100, 200, 500 msec., 1, 2, 5 or 10 sec., 1 or 10 min., or 1 hour) in which data are stored in the HD while the input signals are sampled and plotted on the screen at 50 msec. rate. Common to all 128 channels.
Data storing method: Specifies either storing the instantaneous values at the storing time or the average values over the storing interval
Editing stored data: Trend Retrieval view available to open and edit stored data files. Pens can be separated. Data can be thinned out.

Real time data display
Pen position indicators
: Shows the current position of each pen.
Overview: Shows all 128 channels in one view. Bargraphs and ON-OFF status indicators changes colors according to predefined alarm conditions.

Retrieving stored data: Stored data files can be opened and displayed on the screen. (Data stored by MSR128LS or MSR128LV cannot be opend on the MSR128-V6.)
Window size adjustment: Window size is automatically readjusted to fill the entire screen area.
Adjustable screen area:
1024 × 768 (XGA)
1280 × 768 (800) (WXGA)
1280 ×1024 (SXGA)

■ MSR128LS, MSR128LV (128-point PC Recorder Software)
Sampling rate: 50 msec. or 500 msec. selectable

Storing conditions
Continuous recording: Uses Start/Stop control button on the screen.
Conditional recording: Uses the built-in trigger input to start/stop recording; stores data when the preset condition is true (ON or OFF).
Defined time recording: Stores data at a specific time for a specified time duration. One time or everyday storing selectable.
External trigger recording: Uses an external contact signal to start “Event” recording; specifies number of samples both before and after the trigger condition is true (max. 1200 samples respectively).

Storing interval
High speed mode (Group 0): 50 msec.
Normal mode (Group 1 thr. 10): 0.5, 1, 2, 5 or 10 sec. or 1 min. selectable per group of 12 pens.

Functions: Square root extraction or moving average (per 2 thr. 16 samples)
Real time data display: Vertical or horizontal (left to right or right to left) selectable
Comparing stored data: Two sets of stored data files can be opened and displayed on the screen.
Retrieving stored data: Stored data files can be opened and displayed on the screen.
(Data stored by MSR128 cannot be opend on the MSR128LS or MSR128LV.)

I/O MODULE SELECTIONS

■ I/O MODULES FOR MSR128-V6

SYSTEM CONFIGURATION EXAMPLES

--------------------
