Đầu đốt ống đốt Eclipse Tube Firing Burners

MODEL

DESCRIPTION

TECHNICAL SPECIFICATIONS

Đầu đốt Eclipse - 310 - Tube Firing Burner

Designed to Fire Radiant and Immersion Tubes
Low Emissions

Current Version: 2.5
Type: Nozzle Mixing
Number of Sizes: 3 (3" to 10" tubes)
Capacity Range: 300,000 to 2,000,000 (Btu/hr) 88 to 586 (kW)
Turndown: up to 40:1
Max. Process: 1900°F, 1040°C
Fuels: Natural Gas, Propane, Butane
Typical Applications: Indirect Fired Furnaces, Tempering, Hardening, Continuous Lines, Annealing, Galvanizing, Liquid Heating
Key Attributes:   Easy set-up with built-in orifice plates. One burner for multiple sized radiant tubes. Outstanding heat distribution.

Đầu đốt Eclipse - 317 - Bayonet Recuperator

Heat Exchanger
Low cost.

Current Version: 1.0
Type: Recuperator
Number of Sizes: 3" (4", 5" & 6" tubes)
Capacity Range: 150,000 to 250,000 (Btu/hr) 44 to 73 (kW)
Turndown: N/A
Max. Process: 2100°F, 1090°C
Fuels: N/A
Typical Applications:
Indirect Fired Furnaces, Tempering, Hardening, Continuous Lines, Annealing, Galvanizing
Key Attributes:   Cost effective heat recovery. Improves burner efficiency to 60%. Robust, reliable performance.

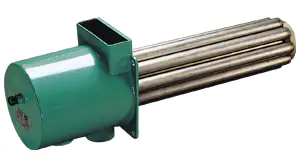

Đầu đốt Eclipse - 318 - Bayonet Ultra Recuperator

Heat Exchanger
Multi-tube efficiency

Current Version: 1.0
Type: Recuperator
Number of Sizes: 4 (3" to 8" tubes)
Capacity Range: 60,900 to 400,000 (Btu/hr) 18 to 117 (kW)
Turndown: N/A
Max. Process: 2100°F, 1090°C
Fuels: N/A
Typical Applications: Indirect Fired Furnaces, Tempering, Hardening, Continuous Lines, Annealing, Galvanizing
Key Attributes: Outstanding heat recovery value. Improves burner efficiency up to 65%. Air cooled housing.

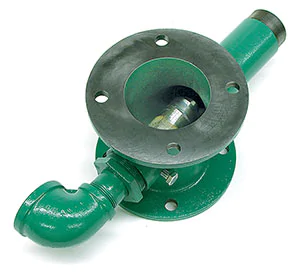

Đầu đốt Eclipse - 319 - E-Jector

FGR Device
50% NOx reduction.

Capacity: 500,000 BTU/hr (132 kW)
Diameter: 4 to 6 inches (102 to 152 mm)
Key attributes: emissions reduction. NOx emissions reductions of more than 50% over existing emissions levels. High fuel efficiencies. Maximized performance and assured compatibility with radiant tubes.

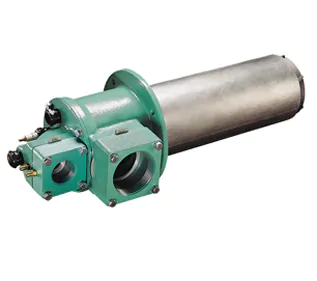

Đầu đốt Eclipse - 325 - Single Ended Radiant Tube Burner

Outstanding Fuel Efficiency
Low NOx

Current Version: 5.7
Type: Nozzle Mixing
Number of Sizes: 3 (4.5", 6", 8")
Capacity Range: 100,000 to 300,000 (Btu/hr) 29 to 88 (kW)
Turndown: 10:1
Max. Process: 1850°F, 1010°C
Fuels: Natural Gas
Typical Applications: Indirect Fired Furnaces, Tempering, Hardening, Continuous Lines, Annealing, Galvanizing
Key Attributes: Up to 80% efficiency. Compact design incorporates burner and recuperator. Easy installation and setup.

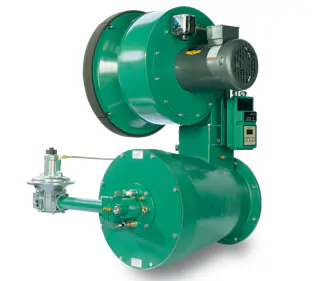

Đầu đốt Eclipse - 330 - ImmersoJet

Indirect Fired Burner
High heat tranfer rate

Current Version: 2.6
Type: Nozzle Mixing
Number of Sizes: 5 (2", 3", 4", 6", 8")
Capacity Range: 190,000 to 8,000,000 (Btu/hr) 56 to 2344 (kW)
Turndown: 7:1 minimum
Max. Process: 200 - 400°F, 93 - 204°C
Fuels: Natural Gas, Propane, Butane
Typical Applications: Wash and rinse tanks, Dip Tanks, Pickling Tanks, Spray Washers, Deep Fryers Salt Baths, Quench Tanks
Key Attributes: Up to 80% efficiency.Allows the use of smaller, lower cost tubes.

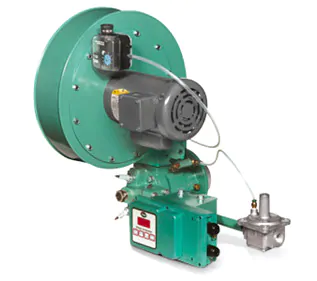

Đầu đốt Eclipse - 360 - ImmersoPak

Indirect Fired Burner
Simple and durable

Current Version: 2.6
Type: Nozzle Mixing
Number of Sizes: 6 (4", 5", 6", 8", 10", 12")
Capacity Range: 270,000 to 4,100,000 (Btu/hr) 79 to 1200 (kW)
Turndown: 4.5:1 minimum
Max. Process: 200 - 400°F, 93 - 204°C
Fuels: Natural Gas, Propane, Butane
Typical Applications: Wash and rinse tanks, Dip Tanks, Pickling Tanks, Spray Washers, Deep Fryers, Salt Baths, Quench Tanks
Key Attributes: Up to 80% Efficiency. Easy Setup with no gas adjustment. Compact, modular design.
