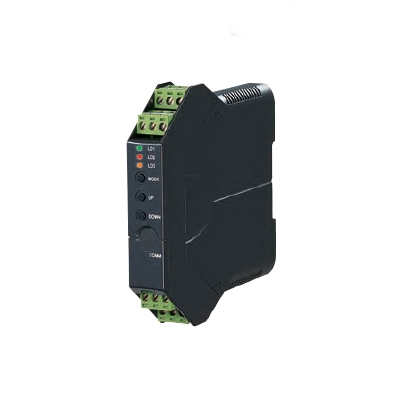

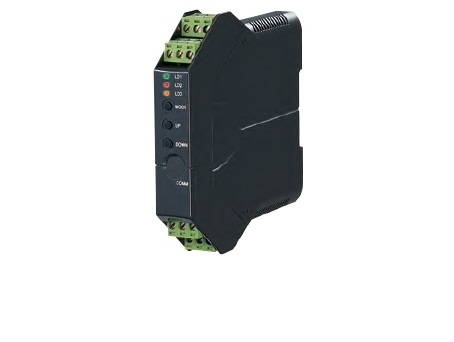

POTENTIOMETER TRANSMITTER Model: M3LM

POTENTIOMETER TRANSMITTER

Model: M3LM

POTENTIOMETER TRANSMITTER

Model: M3LM - R4 / A

Functions & Features
• Provides a DC output proportional to a potentiometer or
slidewire position input
• Easy ‘One-Step Cal’ calibration using the front three
control buttons without needing a PC; PC software is also
usable
• Both input and output type and range are configurable
• Front control button function can be locked
• High-density mounting available

MODEL: M3LM–R4/[1][2]

INPUT
Total resistance 90 Ω – 20 kΩ

OUTPUT – Field-selectable
Current
0 – 20 mA DC
Voltage
-2.5 – +2.5 V DC
-10 – +10 V DC

POWER INPUT
DC Power
R4: 10 – 32 V DC
(Operational voltage range 9 - 36 V, ripple 10 %p-p max.)

[1] CONFIGURATION OPTIONS
A: PC and field configurable
B: Field configurable

[2] OPTIONS (multiple selections)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
