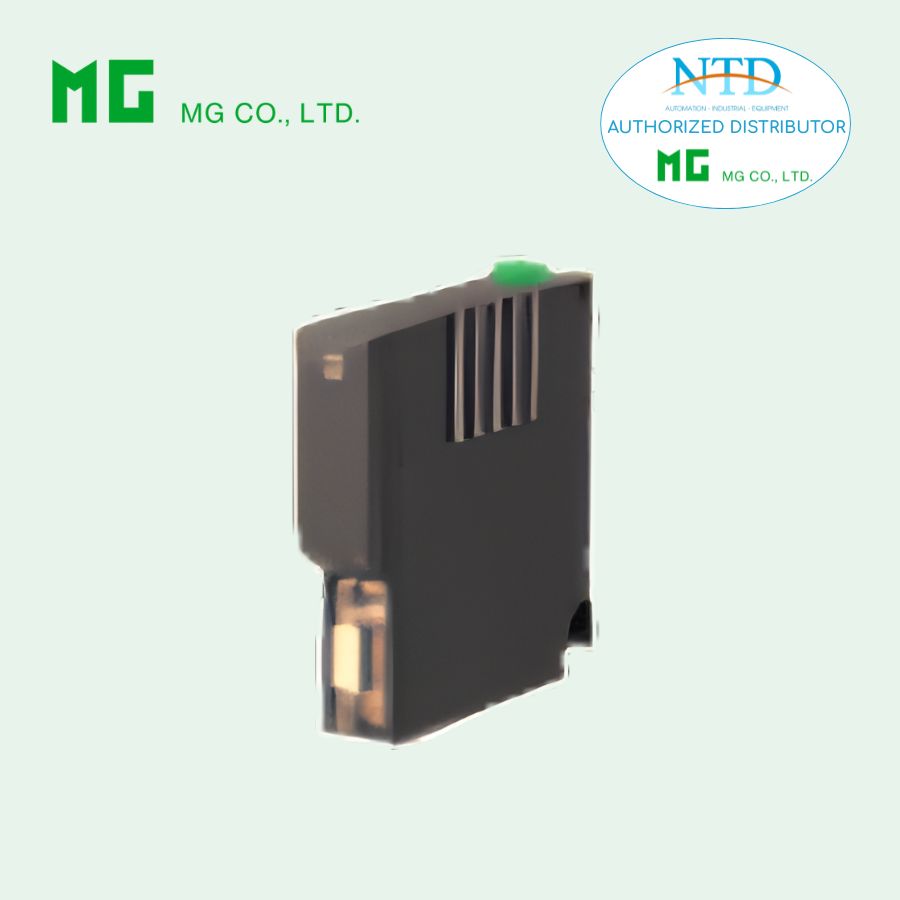

R6-NP1 PROFIBUS-DP INTERFACE MODULE

Liên hệ Còn hàng

Remote I/O R6 Series

PROFIBUS-DP INTERFACE MODULE

(for 62-point analog signals)

MODEL: R6-NP1[1]

ORDERING INFORMATION

• Code number: R6-NP1[1]
Specify a code from below for [1].
  (e.g. R6-NP1/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS

Connection
  Network
: 9-pin D-sub connector, female
  Internal bus: Via the Installation Base (model: R6x-BS)
  Power supply: Via the Installation Base (model: R6x-BS)
Max. number of I/O modules: 31 (analog 62 points)
  Module address: 1 to 31
Isolation: PROFIBUS to internal bus or internal power
RUN indicator: Bi-color (green/red) LED (refer to the instruction manual)
ERR indicator: Bi-color (green/red) LED (refer to the instruction manual)

PROFIBUS COMMUNICATION

Interface: PROFIBUS-DP, slave (RS-485 isolation)
Station No. setting: Rotary switch; 00 - 7D
(Station No. is 7D even setting greater value)
Max. baud rate: 12 Mbps
Protocol: DPV1 (The following functions are available.)
Alarm function (Pull/Plug alarm, Status
alarm);
I&M function (I&M 0 through 3)
Transmission cable: Approved for PROFIBUS-DP
GSD file: Msys0C57.GSD
Downloadable at our web site
Input data: Max. 124 bytes
Output data: Max. 124 bytes
Total I/O data: Max. 248 bytes
Diagnostics: Module-related, Status (device-related), Channel-related (max. 32 channels, maskable)

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R6x-BS)
Weight: 100 g (0.22 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @1 minute (PROFIBUS to internal bus or internal power)

STANDARDS & APPROVALS

EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

EXTERNAL VIEW

I/O DATA DESCRIPTIONS

EXTERNAL DIMENSIONS unit: mm [inch]

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
