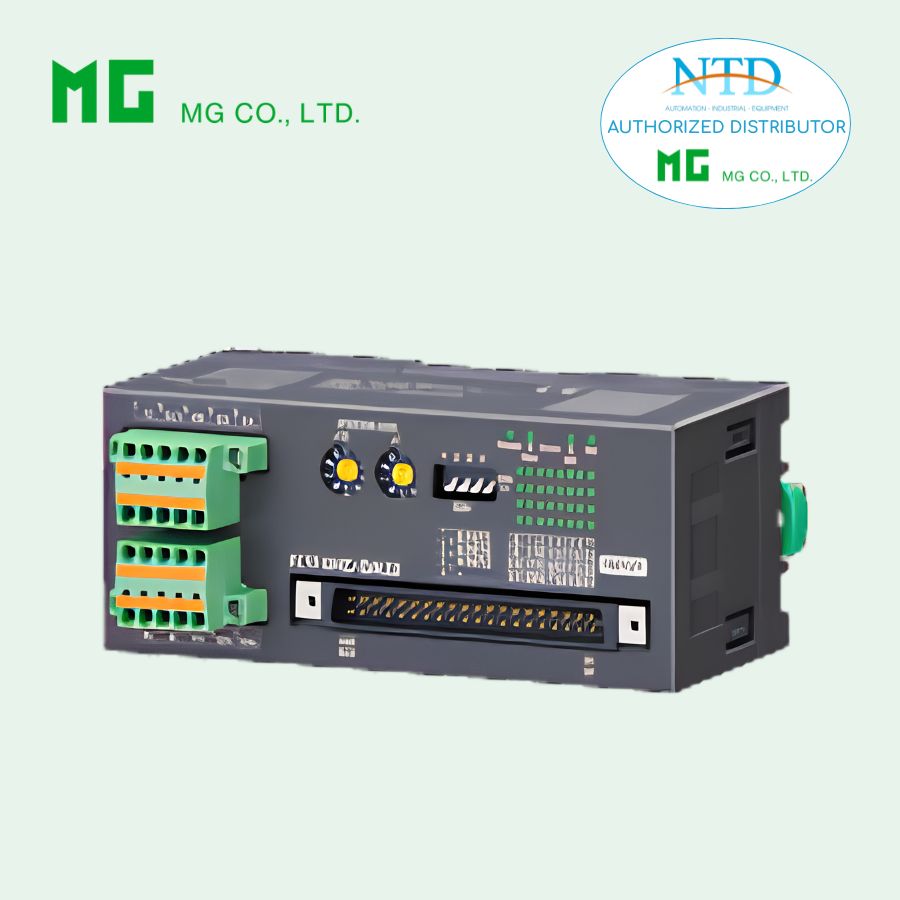

CC-Link I/O MODULE R7F4HC-DAC32D-K

Liên hệ Còn hàng

Thông tin sản phẩm

R7F4HC-DAC32D-K

Remote I/O R7F4H Series

CC-Link I/O MODULE

(NPN/PNP discrete input, PNP discrete output, 16 points each, FCN connector)
Functions & Features
• Remote I/O module to input/output digital I/O signal to field bus (CC-Link)

MODEL: R7F4HC-DAC32D-K-R[1]

ORDERING INFORMATION

• Code number: R7F4HC-DAC32D-K-R[1]
Specify a code from below for [1].
(e.g. R7F4HC-DAC32D-R/Q)
• Specify the specification for option code /Q
(e.g. /C01)

I/O TYPE

DAC32D: NPN/PNP discrete input &
PNP discrete output, 16 points each

TERMINAL BLOCK

K: Tension clamp terminal block for power supply
Tension clamp terminal block for power supply for communicaion
FCN connector for I/O

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[1] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

RELATED PRODUCTS

• CSP+ file
The CSP+ file are downloadable at our web site.
CSP+ file is also downloadable at CC-Link Partner Association's web site.

GENERAL SPECIFICATIONS

Connection
CC-Link: Tention clamp terminal block
Power supply: Tention clamp terminal block
I/O signal, exc. supply: FCN connector
Housing material: Flame-resistant resin (gray)
Isolation: I/O or exc. supply to CC-Link to power supply to FE1
Discrete I/O status indicator LED: Green LED turns on with I/O ON

CC-Link COMMUNICATION

Transmission: CC-Link Ver.1.10
Network cable: CC-Link cable designated by Mitsubishi Electric
Station Type: Remote I/O device
Data allocation: 1
Station number: 1 - 64 (rotary switch, default:00)
Baud rate setting: 156 kbps (default), 625 kbps, 2.5 Mbps,
5 Mbps, 10 Mbps (DIP switch)
Terminating resistor: Built-in (DIP Switch, default: disable)
Status indicator LEDs: Power, Run, Error, SD, RD
（For details, refer to the users manual.）

INPUT SPECIFICATIONS

Common: Positive or negative common (NPN/PNP) per 16 points
Number of inputs: 16
Maximum inputs applicable at once: No limit (at 24 V DC)
Rated input voltage: 24 V DC ±10 %; ripple 5 %p-p max.
ON voltage / current: ≥ 17 V DC (input – COM) / ≥ 2.3 mA
OFF voltage / current: ≤ 5 V DC (input – COM) / ≤ 0.75 mA
Input current: ≤ 3.5 mA per point at 24 V DC
Input resistance: Approx. 7.2 kΩ
ON delay: ≤ 0.5 msec.
OFF delay: ≤ 0.5 msec.

OUTPUT SPECIFICATIONS

Common: Positive common (PNP) per 16 points
Number of output: 16 points
Maximum outputs applicable at once: No limit (at 24 V DC)
Rated load voltage: 24 V DC ±10 %, ripple 5 %p-p max.
Rated output current: 0.1 A per point, 1.6 A per common
Residual voltage: ≤ 1.2 V
Leakage current: ≤ 0.1 mA
ON delay: ≤ 0.2 msec.
OFF delay: ≤ 0.5 msec.
With shortcircuit protection
With overheat protection
(When driving an inductive load, connect a diode in parallel with the load.)

INSTALLATION

Current consumption
•DC (@ 24 V DC): ≤ 50 mA
(contact I/O load charge is not included)
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail (35 mm rail)
Weight: 160 g (0.35 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(I/O or exc. supply to CC-Link to power supply to FE1)
