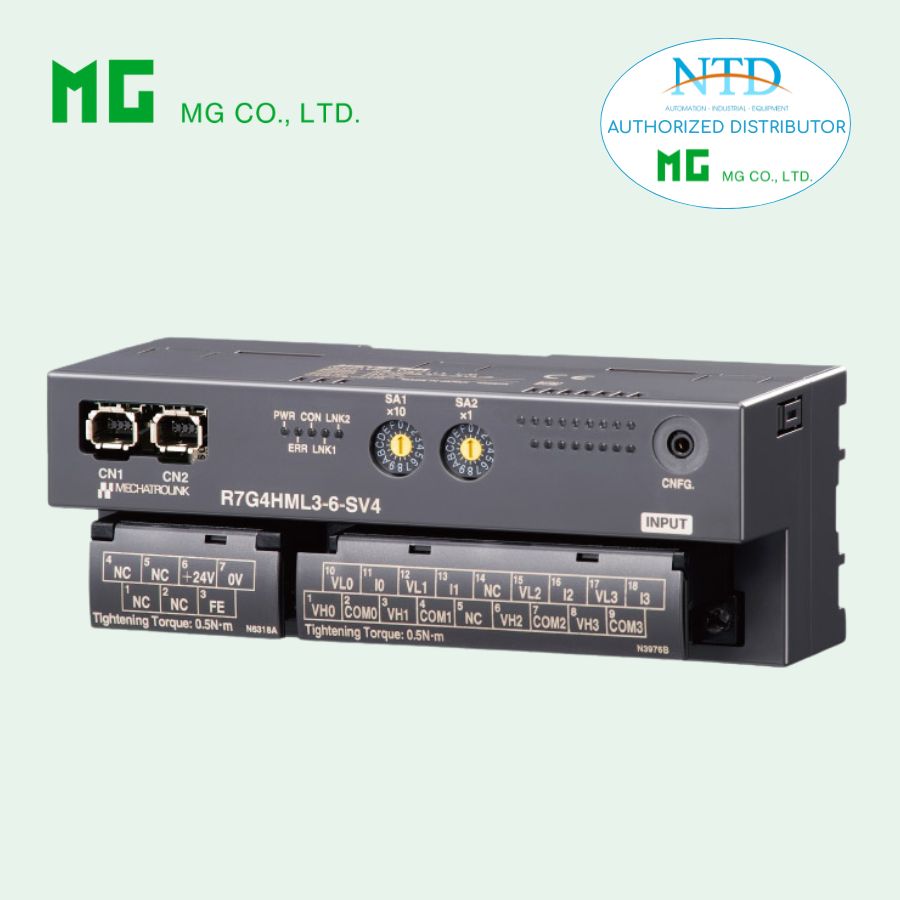

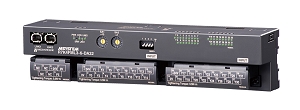

R7G4HML3-6-SVAF4

Remote I/O R7G4H Series

MECHATROLINK I/O MODULE

(high resolution, high-speed DC voltage/current input, 4 points, isolated, screw terminal block, MECHATROLINK- III use)
Functions & Features
• 4 points high-speed DC voltage/current input for MECHATROLINK- III
• Easy parameter setting of individual channels with the configurator software

MODEL: R7G4HML3-6-SVAF4–R[1]

ORDERING INFORMATION

• Code number: R7G4HML3-6-SVAF4-R[1]
Specify a code from below for [1].
(e.g. R7G4HML3-6-SVAF4-R/Q)
• Specify the specification for option code /Q
(e.g. /C01/SET)

TERMINAL BLOCK

6: Screw terminal block for power supply
Connector for MECHATROLINK- III
Screw terminal block for I/O

I/O TYPE

SVAF4: high resolution, high-speed DC voltage/current input,
4 points (10 V/20 mA)

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[1] OPTIONS

Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q (multiple selections)

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
EX-FACTORY SETTING
/SET: Preset according to the Ordering Information Sheet
(No. ESU-7772-J)

RELATED PRODUCTS

• PC Configurator cable (model: MCN-CON or COP-US)
• PC configurator software (model: R7CFG)
Downloadable at our web site.

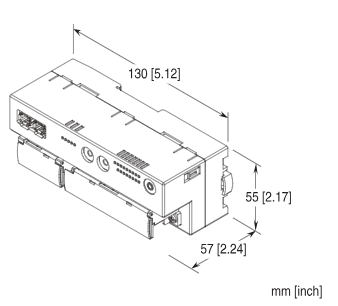

GENERAL SPECIFICATIONS

Connection
  MECHATROLINK-III: MECHATROLINK-III connector
Power input, input: M3 separable screw terminal (torque 0.5 N·m)
Solderless terminal: Refer to the drawing at the end of the section.
   Recommended manufacturer: Japan Solderless Terminal MFG.Co.Ltd, Nichifu Co.,ltd
  Applicable wire size: 0.25 to 1.65 mm2 (AWG 22 to 16)
Screw terminal: Nickel-plated steel
Housing material: Flame-resistant resin (gray)
Isolation: Input 0 to input 1  to input 2 to input 3 to MECHATROLINK or FE to power
Zero adjustments: Configurable via R7CFG
Span adjustments: Configurable via R7CFG
Input range: Configurable via R7CFG
Number of times of averaging: Configurable via R7CFG
Status indicator LEDs: PWR, ERR, CON, LNK1, LNK2
(Refer to the instruction manual for details)
■Recommended solderless terminal

MECHATROLINK-III COMMUNICATION

Baud rate: 100 Mbps
Transmission distance: 6300 m max.
Distance between stations: 100 m max.
Transmission media: MECHATROLINK cable (Model JEPMC-W6013-x-E, Yaskawa Controls Co., Ltd.)
Connector: TYCO AMP Industrial mini I/O connector
Max. number of slaves: 62
(The maximum number of slaves might change depending on the master unit. Refer to the manual of the master unit)
Transmission cycle: 125 µsec., 250 µsec., 500 µsec., 1 – 64 msec. (with 1 msec. increments)
Communication cycle: 125 µsec. through 64 msec.
Applicable profile: Standard I/O profile (cyclic communication)
Event-driven communication acquiring ID profile (event-driven communication)
Transmission bytes: 16 bytes
Station address: 03H through EFH (set with rotary switches)
Cyclic communication: Available
Event-driven communication: Available
Slave monitoring: None

INPUT SPECIFICATIONS

■ Current range
• Input resistance: 50Ω
• Operational range: -23- +23mA
• Input range: -20 – +20 mA DC, 0 – 20 mA DC,
4 – 20 mA DC
■ Narrow span voltage
• Input resistance: ≧ 100 kΩ
• Operational range: -1.15- +1.15V
• Input range: -1 – +1 V DC, 0 – 1 V DC,
-0.5 – +0.5 V DC
■ Wide span voltage
• Input resistance: ≧ 1 MkΩ
• Operational range: -11.5 - +11.5V
• Input range: -10 – +10 V DC, -5 – +5 V DC,
0 – 10 V DC, 0 – 5 V DC, 1 – 5 V DC

INSTALLATION

Current consumption
•DC: Approx. 100 mA
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail (35 mm rail)
Weight: 220 g (0.49 lb)

PERFORMANCE

Conversion accuracy: ±0.1 %
Conversion rate: 1 msec. / 4 CH
Conversion data: -32768 - +32767 or 0 - 65535
Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)
Input delay time: ≤ 1 msec. (0 - 90 %)
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(input 0 to input 1 to input 2 to input 3 MECHATROLINK or FE to power)
