ES-7812 Rev.20



R7HL

Remote I/O R7 Series

HI-SPEED LINK SYSTEM I/O MODULE



MODEL: R7HL-[1]-R[2]

ORDERING INFORMATION

• Code number: R7HL-[1]-R[2]
Specify a code from below for each of [1] and [2].
  (e.g. R7HL-PA2SA7-R/H/C/Q)
• Specify the specification for option code /Q
  (e.g. /C01/SET)

[1] I/O TYPE

DA16: Discrete input, 16 points
DC16A: NPN transistor output, 16 points
DC16B: PNP transistor output, 16 points
DAC15E: Discrete input, 8 points
  NPN transistor output, 7 points (independent I/O common)
DAC16A: PNP discrete input, 8 points
  NPN transistor output, 8 points
DAC16B: NPN discrete input, 8 points
  PNP transistor output, 8 points
DAC16C: NPN discrete input &
  NPN transistor output, 8 points each
DAC16ES: Discrete input, 8 points
  NPN transistor output, 8 points (independent I/O common)
DC8C: Relay contact output, 8 points
SV4: DC voltage/current input (10 V/20 mA), 4 points
SVF4: DC voltage/current input (10 V/20 mA), high speed,
4 points, non-isolated (CE not available)
TS4: Thermocouple input, 4 points
RS4: RTD input, 4 points
LC2: Strain gauge input, 2 points (with monitor output)
PA4E: Totalized pulse input, 4 points
PA2SJ: Encoder input (speed / position) 2 points
  (RS-422 input)
PA2SA1: Encoder input (speed / position) 2 points
  (5 V open collector input)
PA2SA4: Encoder input (speed / position) 2 points
  (12 V open collector input)
PA2SA7: Encoder input (speed / position) 2 points
  (24 V open collector input)
YV2: DC voltage output, 2 points
YS2: DC current output, 2 points
SVF8NL: DC voltage input, high speed, 8 points
  (non-isolated, 12 bits data)
YV4L: DC votage output, 4 points
  (isolated, 12 bits data)
YS4L: DC current output, 4 points
  (isolated, 12 bits data)

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[2] OPTIONS (multiple selections)

Communication Mode
blank: Full-duplex
/H: Half-duplex
Transfer rate
  (Selectable only for SVF8NL, YV4L and YS4L)
blank: 12 Mbps/6 Mbps
/3: 3 Mbps
Sensor Excitation
(Selectable for PA2SJ and PA2SAx)
blank: External excitation
/C: Incorporated excitation
Input Range
(Selectable only for LC2 (be sure to specfy))
/R20: -2 - +2 mV/V
/R10: -1 - +1 mV/V
/R05: -0.5 - +0.5 mV/V
CR Filter
(Selectable only for LC2 (be sure to specfy))
/F2K: 2 kHz/2 Hz
/F1: 1 Hz/2 Hz
Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q (multiple selections)

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
EX-FACTORY SETTING
/SET: Preset according to the Ordering Information Sheet
 (No. ESU-7812-x)

FUNCTIONS & FEATURES

The R7HL interfaces analog and discrete I/O signals with a PLC via HLS (Hi-speed Link System)
Input sensor type (thermocouple, RTD) and range can be selected with the front DIP switches for all channels.  In order to set different selections for individual channels, zero/span adjustments, scaling and temperature unit, use the PC Configurator Software (model: R7CON)
(HLS is the abbreviation for “Hi-speed Link System” of Step Technica Co., Ltd.)

RELATED PRODUCTS

• PC Configurator cable (model: MCN-CON or COP-US)
• PC configurator software (model: R7CON)
Downloadable at our web site.

GENERAL SPECIFICATIONS

• Common Specifications
Power input: 24 V DC ±10 %; ripple 10 %p-p max.
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @1 minute
(between isolated circuits)
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Storage temperature: -20 to +65°C (-4 to +149°F)
Mounting: DIN rail (35 mm wide)
Housing material: Flame-resistant resin (gray)
Status indicator LEDs: PWR, RUN (Refer to the instruction manual for details)
 Current consumption & weight
R7HL-DA16: Approx. 35 mA, 200 g (0.44 lb)
R7HL-DC16A: Approx. 45 mA, 200 g (0.44 lb)
R7HL-DC16B: Approx. 45 mA, 200 g (0.44 lb)
R7HL-DAC15E: Approx. 40 mA, 200 g (0.44 lb)
R7HL-DAC16A: Approx. 40 mA, 200 g (0.44 lb)
R7HL-DAC16B: Approx. 40 mA, 200 g (0.44 lb)
R7HL-DAC16C: Approx. 45 mA, 200 g (0.44 lb)
R7HL-DAC16ES: Approx. 40 mA, 200 g (0.44 lb)
R7HL-DC8C: Approx. 45 mA (60 mA*), 200 g (0.44 lb)
R7HL-SV4: Approx. 90 mA, 200 g (0.44 lb)
R7HL-SVF4: Approx. 90 mA, 200 g (0.44 lb)
R7HL-TS4: Approx. 90 mA, 200 g (0.44 lb)
R7HL-RS4: Approx. 90 mA, 200 g (0.44 lb)
R7HL-LC2: Approx. 150mA, 220g (0.49 lb)
R7HL-PA4E: Approx. 50 mA, 130 g (0.29 lb)
R7HL-PA2Sx**: Approx. 80 mA, 160 g (0.36 lb)
R7HL-YV2: Approx. 100 mA, 200 g (0.44 lb)
R7HL-YS2: Approx. 140 mA, 200 g (0.44 lb)
R7HL-SVF8NL: Approx. 50 mA, 200 g (0.44 lb)
R7HL-YV4L: Approx. 75 mA, 180 g (0.40 lb)
R7HL-YS4L: Approx. 140 mA, 180 g (0.40 lb)
* Relay driving current.
** Sensor excitation current is added for incorporated sensor excitation type.

HLS COMMUNICATION

Communication mode:
Communication mode option code blank: Full-duplex
Communication mode option code /H: half-duplex
Network cable
Full-duplex communication:
ZHY262PS and ZHT262PS (Shinko Seisen Industry Co., Ltd.)
Half-duplex communication:
ZHY221PS (Shinko Seisen Industry Co., Ltd.)
Dual-shield cable:
ZHY262PBA (Shinko Seisen Industry Co., Ltd.)
Transmission distance / Transfer rate:
Transfer rate option code blank: 100 meters (328 ft)/12 Mbps, 200 meters (656 ft)/6 Mbps
Transfer rate option code /3: 300 meters (984 ft)/3 Mbps
(Selectable with DIP switch)
Status indicator LED: RUN (Refer to the instruction manual for details)
Station address: Rotary switch
(Refer to the instruction manual)
Terminating resistor: Built-in (Selected with the DIP SW; factory setting: disabled)

STANDARDS & APPROVALS

Refer to the manuals to comply with the standards.
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
Low Voltage Directive
(R7HL-DC8C only. Refer to the instruction manual for the detail.)
  EN 61010-1, EN 61010-2-201
  Measurement Category II (output)
  Pollution Degree 2
  Output to power: Basic insulation (150 V)
RoHS Directive

EXTERNAL VIEW

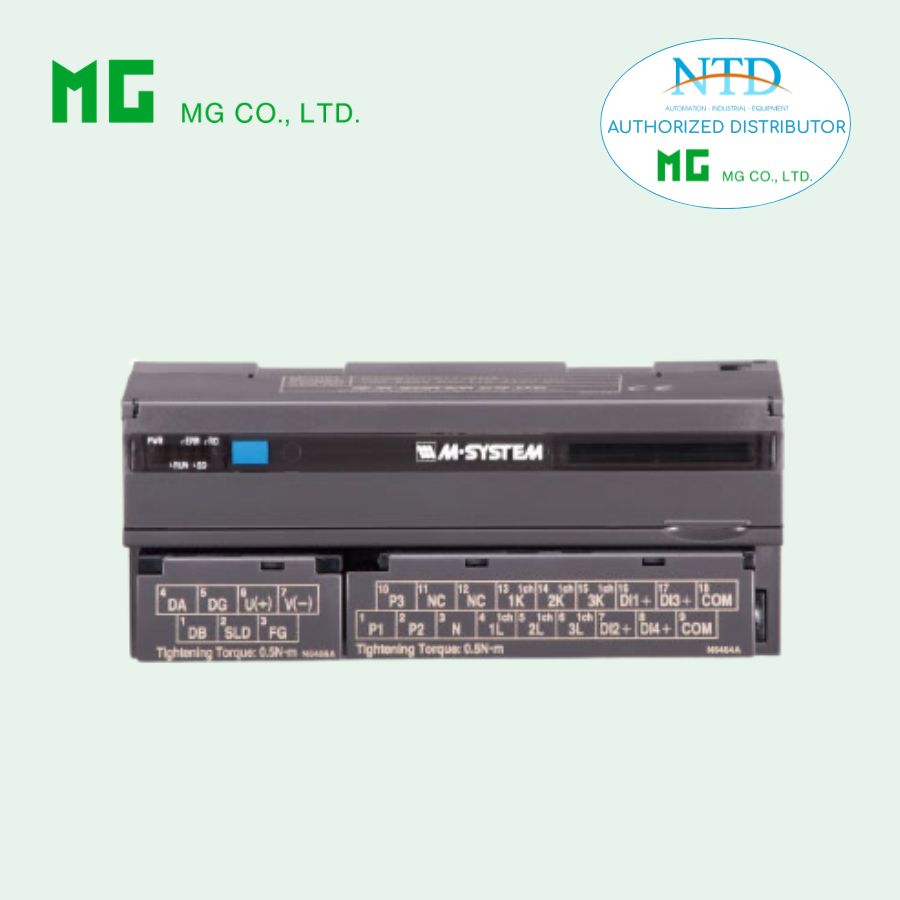

■ View of R7HL-DAC16ES
■ View of R7HL-PA4E
■ View of R7HL-PA2Sx
■ Basic View (except R7HL-DAC16ES, R7HL-PA4E and R7HL-PA2Sx)

CONNECTION DIAGRAMS

 I/O connection (Refer to each model terminal assignment)
• R7HL-PA4E
e-CON connector
Recommended cable connector
: 37104-( )-000FL (3M Company)
(The cable connector is not included in the package.
Specify wire size instead of ( ); refer to the specifications of the product.)
 R7HL-DAC16ES
Tension clamp terminal block

Cable connector: FMC1,5/16-ST-3,5 (Phoenix Contact)
(The cable connector is included in the package.)
Applicable wire size: 0.2 − 1.5 mm2; stripped length 10 mm
Recommended solderless terminal
- AI0,25−10YE 0.25 mm2 (Phoenix Contact)
- AI0,34−10TQ 0.34 mm2 (Phoenix Contact)
- AI0,5−10WH 0.5 mm2 (Phoenix Contact)
- AI0,75−10GY 0.75 mm2 (Phoenix Contact)
- A1−10 1.0 mm2 (Phoenix Contact)
- A1,5−10 1.5 mm2 (Phoenix Contact)

 R7HL-PA2Sx
Tension clamp terminal block

Cable connector: FMC1,5/18-ST-3,5 (Phoenix Contact)
(The cable connector is included in the package.)
Applicable wire size: 0.2 − 1.5 mm2; stripped length 10 mm
Recommended solderless terminal
- AI0,25−10YE 0.25 mm2 (Phoenix Contact)
- AI0,34−10TQ 0.34 mm2 (Phoenix Contact)
- AI0,5−10WH 0.5 mm2 (Phoenix Contact)
- AI0,75−10GY 0.75 mm2 (Phoenix Contact)
- A1−10 1.0 mm2 (Phoenix Contact)
- A1,5−10 1.5 mm2 (Phoenix Contact)
• Except R7HL-DAC16ES, R7HL-PA4E and R7HL-PA2Sx
M3 separable screw terminals (torque 0.5 N·m)
Screw terminal material: Nickel-plated steel
Recommended solderless terminal:
   Applicable wire size: 0.25 to 1.65 mm2 (AWG 22 to 16)
   Recommended manufacturer: Japan Solderless Terminal MFG.Co.Ltd, Nichifu Co.,ltd

DATA CONVERSION

1. 0 - 100% DATA CONVERSION (R7HL-SV4, R7HL-SVF4, R7HL-YV2, R7HL-YS2)
2. 12 BITS DATA CONVERSION (R7HL-SVF8NL, R7HL-YV4L, R7HL-YS4L)
3. ENGINEERING UNIT CONVERSION (R7HL-TS4, R7HL-RS4)
4. ENCODER INPUT

I/O DATA DESCRIPTIONS

Scaling of analog input, analog output and encorder input (speed) is configurable with the configurator software (model: R7CON). Refer to the software manual for details.

EXTERNAL DIMENSIONS unit: mm [inch]

■ DISCRETE I/O MODULE (R7HL-DAC16ES)
■ ANALOG OUTPUT MODULE
■ TOTALIZED PULSE INPUT MODULE
■ ENCODER INPUT MODULE
