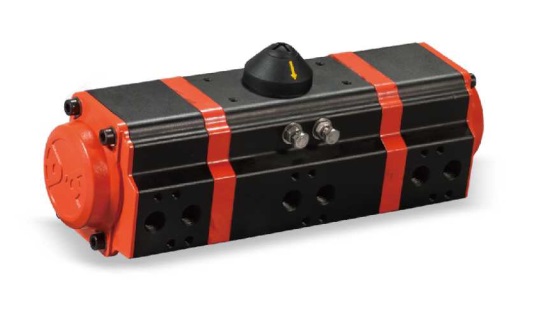

RPT Three Position Ropo Actuator

RPT Three Position Ropo Actuator

Valve Specifications

Cylinder Diameter : 50mm - 1000mm

Air interface and top mounting size is in conform with standard of VDI / MDE3845 NĂMUR .

Bottom hole size is in conform with ISO5211 , DIN3337 .

Constructional style : 3 sections

Travel length : 90°120°180°

Action style : Single and Double

Start and ending position : + 5°

Lockable at anywhere

Temperature range : NT ( - 20C - 80°C ) ; NBR LT ( - 40°C - 80°C ) ;

Silicon rubber HTC - 15°C ~ + 150C ) ;

Fluorous rubber Max pressure : 10 bar

Cylinder Material : Alloy Aluminum , anodizing

Output axle : 45 # electroplate

Piston material : alloy aluminum anodizing

Assemble with : Ball valve , Butterfly valve , Rotary valve .

Three - position style Rope actuator is special kind of actuator with 3 postions ( 0° , 90° , 180° or 0° , 45° , 90° ) . The middle position can be reached by mechanical movement of two auxiliary pistons and can be adjusted . For example , the 90° actuator can have middle positions of 20 30° 50° 70° . The working principle as below :

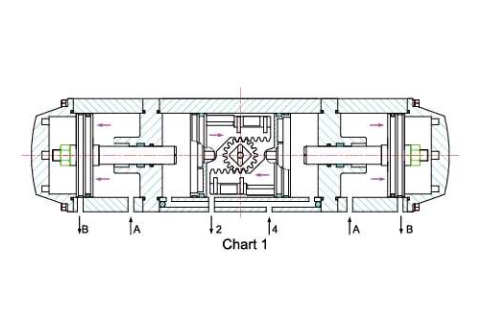

1 . Fully Closed Position From chart 1 we can see that this position is obtained when air is supplied to port 4 and port 2 is in the state of exhaust air .

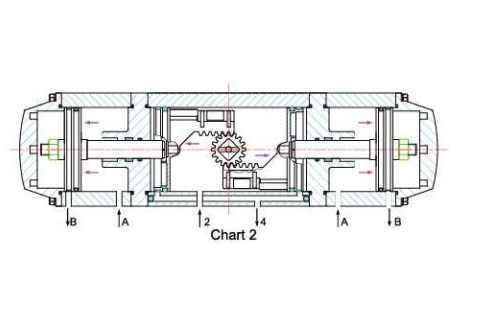

2. Fully Open Position From chart 2 we can see that this position is obtained when air is supplied to port 2 and portA, meantime, port 4 and port B are in the state of exhaust air

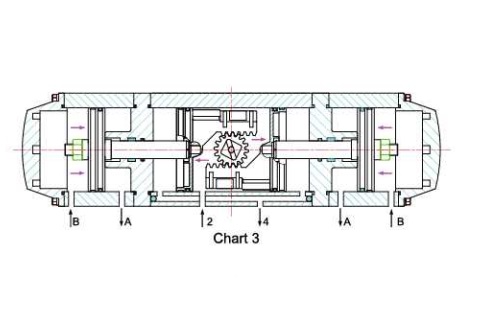

3 . Midway Position From chart 3 we can see that this position is obtained when air is supplied to port 2 and port By meantime , port 4 and portỂ are in the state of exhaust air . In fact that the midway position is achieved by a mechanical stop of movement on the two auxiliary pistons .
