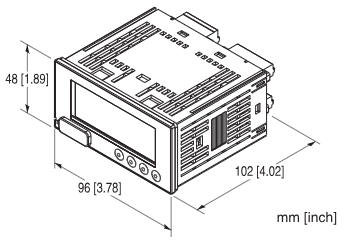

PAPERLESS RECORDER VR4896E-G2

Paperless Recording System

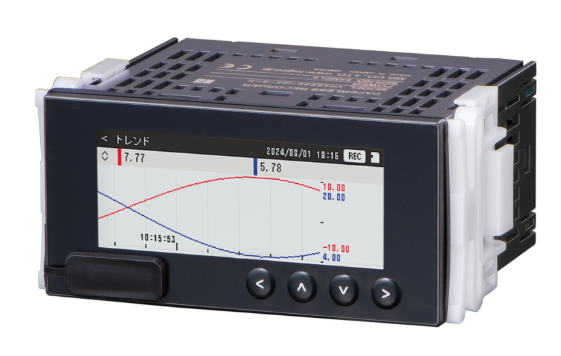

PAPERLESS RECORDER

(color LCD display)
Functions & Features
• 48 × 96 mm square size
• IP55 front panel
• Records measurement data and operation status to SD card
• 100 msec. sampling rate
• SD card can be removed from the front
• Recorded data can be displayed and analyzed using the dedicated application
• DC voltage input, 2 points
• Discrete input 1 point, Photo MOSFET relay output 1 point
Usable to trigger input and alarm output

MODEL: VR4896E-G2-[1]-R[2]

• Code number: VR4896E-G2-[1]-R[2]
Specify a code from below for each of [1] and [2].
  (e.g. VR4896E-G2-1-R/Q)
• Specify the specification for option code /Q
  (e.g. /C01)


COMMUNICATION

E: Ethernet communication


I/O TYPE

G2: DC voltage input, 2 points (non-isolated),
Discrete input, 1 point,
Photo MOSFET relay output, 1 point
(For input range, refer to analog input specifications.)


[1] ANALOG INPUT RANGE

Select input range from the following (ch 1, ch 2).
1: DC input, 2 points (wide span voltage input, 2 points)
4: DC input, 2 points (middle span voltage input, 2 points)
6: DC input, 2 points (narrow span voltage input, 2 points)


POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)


[2] OPTIONS

blank: none
/Q: With options (specify the specification)


COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating


• PC configurator software (model: VR4896CFG)
• Viewer software (model: TRViewer)
Software downloadable at our web site.
• SD card
An SD card is required to store data in the device.
Use an SD card of the specified model number.
Consult us for purchase.
  - Hagiwara Solutions MSDB-016GS(V01SLS


Construction: Panel flush mounting
Degree of protection: IP55; ensured for the front panel of the device independently mounted to a panel
Connection
 Ethernet: RJ-45 connector
 Power supply: Separable tension clamp terminal
 Applicable wire size: 0.2 - 2.5 mm²,
stripped length 10 mm
 I/O: Separable tension clamp terminal
 Applicable wire size: 0.2 - 1.5 mm², stripped length 10 mm
Housing material: Flame-resistant resin (black)
Isolation: Analog input to contact input to contact output to Ethernet or FE to power
Calendar clock: Year (4 digits), month, date, day, hour, minute, second
■ Display
Display device: 2.86-inch TFT LCD
Display colors: 65 536
Resolution: 320 × 125 pixels
Backlight: LED
Backlight life: Approx. 30 000 hours
(The backlight can be replaced in our factory.
The LCD must be replaced at the same time.)
Screen saver standby time: 1 to 10 minutes
Display update interval: 100 msec.


Communication Standard: IEEE 802.3u
Transmission: 10BASE-T, 100BASE-TX
Baud rate: 10/100 Mbps (Auto Negotiation function)
Protocol: IP, TCP, UDP, ICMP, SNTP, HTTP, DHCP, SMTP, SMTPS, TLS, Modbus/TCP, SLMP, Modbus/TCP server, FTP server, FTP client, FTPS client
Transmission media: 10BASE-T (STP, Category 5)
100BASE-TX (STP, Category 5e)
Max. length of fieldbus segment: 100 meters
Ethernet indicator LED: ACT, LNK
IP address: 192.168.0.10 (factory setting)


Input signal: DC voltage, 2 points
■ Wide span voltage
Input resistance: ≥ 1 MΩ
± 10 V DC to ± 0.8 V DC
Maximum input range: ± 10.5 V DC
■ Middle span voltage
Input resistance: ≥ 100 kΩ
± 0.8 V DC to ± 80 mV DC
Maximum input range: ± 0.84 V DC
■ Narrow span voltage
Input resistance: ≥ 100 kΩ
± 80 mV DC to ± 10 mV DC
Maximum input range: ± 84 mV DC


Contact input: Dry contact
Common: Negative common
Rated detective voltage: Approx. 5 V DC (internal supply)
ON voltage / resistance: ≤ 0.5 V / ≤ 500 Ω
OFF voltage / resistance: ≥ 4.0 V DC / ≥ 20 kΩ
Input current: Approx. 3.8 mA
Input resistance: Approx. 1 kΩ
ON delay: ≤ 2.0 msec.
OFF delay: ≤ 2.0 msec.

Photo MOSFET relay output
Rated load voltage: 48 V peak AC / DC
Rated output current: 0.2 A per point
Output ON resistance: ≤ 1 Ω
Leakage current at open circuit: ≤ 0.1 mA
ON delay: ≤ 50 msec.
OFF delay: ≤ 1 msec.
(Recommended to protect the contact and to eliminate noise when driving an inductive load.)


Power consumption
• DC: ≤ 2.4 W, ≤ 100 mA (@ 24 V DC)
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 10 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Panel flush mounting
Weight: 240 g (0.53 lb)


Conversion accuracy: ±0.1 % (narrow span voltage input
± 20 mV DC: ± 0.2%, ± 10mV DC: ± 0.3%)
Conversion rate: 100 msec.
Temp. coefficient: ±0.015 % /°C (±0.008 %/°F)
(±0.03 % /°C [±0.02 %/°F] with ± 10 mV DC)
Calendar clock (with battery backup):
 Accuracy: Monthly deviation of ≤ 2 minutes at 25°C or 77 °F
 Back up period: Approx. 2 months
 Battery: Lithium secondary battery (non-removable)
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(analog input to contact input to contact output to Ethernet or FE to power supply)


EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

--------------------
