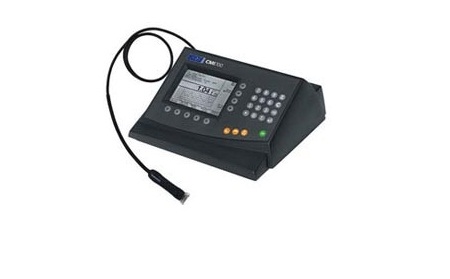

Oxford/CMI CMI 730 & 730-EM7

·         Measures non-conductive coatings over nonmagnetic substrates, metallic coatings on ferrous substrates and conductive coatings on nonconductive substrates

·         Eddy Current Probes: Zn, Cd, Cr, Cu on Steel, Organic, Paint & Powder Coats on Al, Anodize on Al etc.

·         Measures nonmagnetic coatings over magnetic substrates

·         Magnetic Induction Probes: Zn Ni, Cd, Cr, Cu, Organic, Paint & Powder, etc. Coatings on Steel

·         Accurately quantifies coating thickness after deposition

The CMI-730 packages enable control of plating / coating processes using advanced magnetic induction and eddy-current technology. The CMI730 provides non-destructive coating / plating thickness measurement for non-magnetic coatings over magnetic substrates, non-conductive coatings over non-magnetic substrates and metallic coatings on ferrous substrates.

Features:

·         High contrast color LCD display

·         Memory to store up to 5000 measurements, parameters and calibrations

·         RS232 PC connectivity

·         Parallel printer port

·         Multi-level user password security system

·         Statistical data analysis with histogram, X-bar, R-chart and trend charts, which can be viewed on the display or printed direct from the instrument

Includes: EM7 module, ECP-M probe, EM1 guide and ZN/Fe standards
