Oxford CMI 95M
Oxford CMI 95M
Oxford/CMI CMI 95M

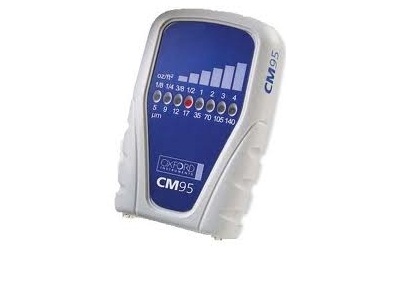

CMI-95M Micro-Resistance Coating Thickness Gauge
Oxford Instruments presents the new CM-95M battery operated handheld gauge for measuring copper foil thickness on printed circuit board substrate materials from 1/8 to 4.0 oz/ft2, (5-140μm) in less than a second.
· The CM-95M is factory calibrated and requires no standards
· It is easy-to-use, just touch the unique soft-touch probe to the copper surface and note the thickness indication.
· Unit comes with full One Year Factory Warranty
Specification :
Dimensions : |
(W) 2.6” (66 mm) (D) 1.25” (32 mm) (H) 4.1” (104 mm) |
Weight : |
4.4 oz (125 grams) |
Battery : |
9 volt |
Ranges : |
Oz/Ft2 1/8 1/4 3/8 1/2 1 2 3 4 |
Includes: Instruction sheet, 9V alkaline battery and protective case with clip belt
