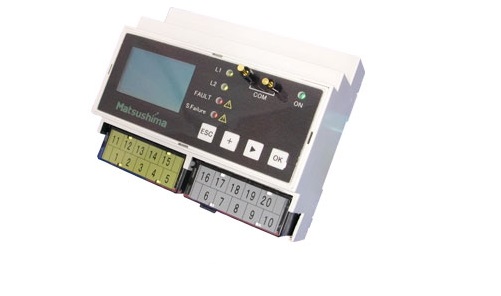

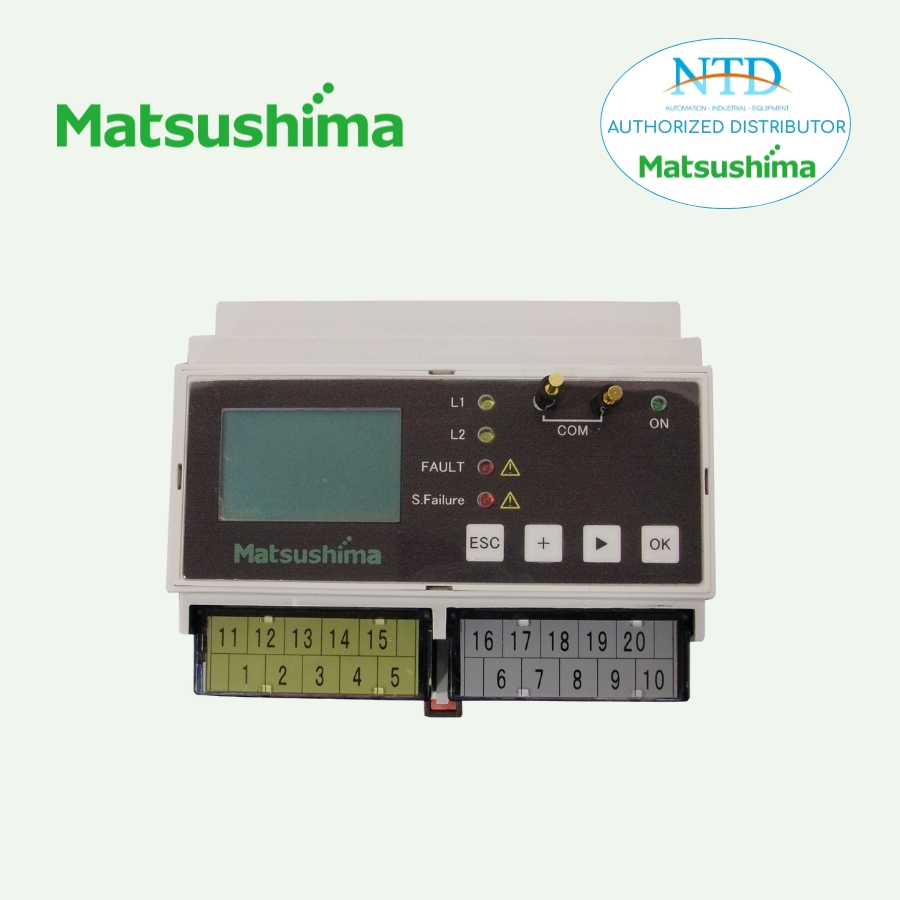

Signal Conditioner, Model: MSC‐01
Signal Conditioner
Model: MSC‐01

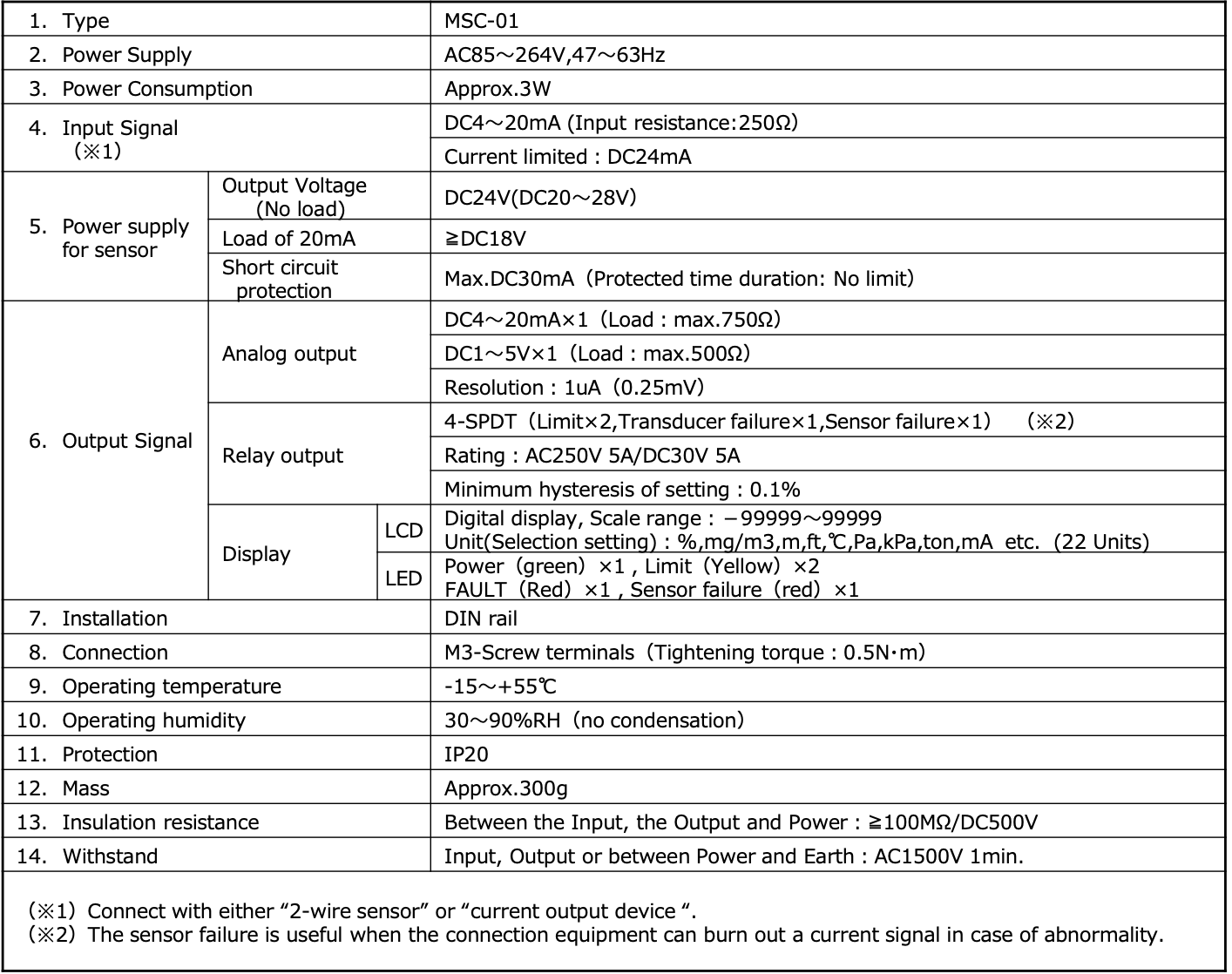

Power Supply ：AC85~264V，47-63HZ Input Signal ：DC4~20mA(Input resistance：250Ω)
Current limit：DC 24mA
Power Supply for Sensor ：DC24V(DC 20~28V)
Analog Output ：DC4~20mA×1
(Load：Max.750Ω)
DC1~5V×1(Load：Max.500Ω)
Replay Output ：4-SPDT Relay output
・Limit×2
・Transducer failure×1
・Sensor failure×1 Rating：AC250V 5A／DC30V 5A
Display ：LCD Digital display
(Scale range:－99999~＋99999)
：LED Display
Power(Green)×1，Limit(Yellow)×2
Fault(Red)×1，Sensor failure(Red)×1
Can be paired & used for 2 line transmitting devices or output devices.
Outputs instrumentation signal 4-20mA or DC1-5V and contact signal for an input current signal.
LCD digital display is included, so level indication can also be monitored at the local control panel.
・Equipped with a false alarm output as a standard feature, abnormalities of the sensor can be
detected quickly.

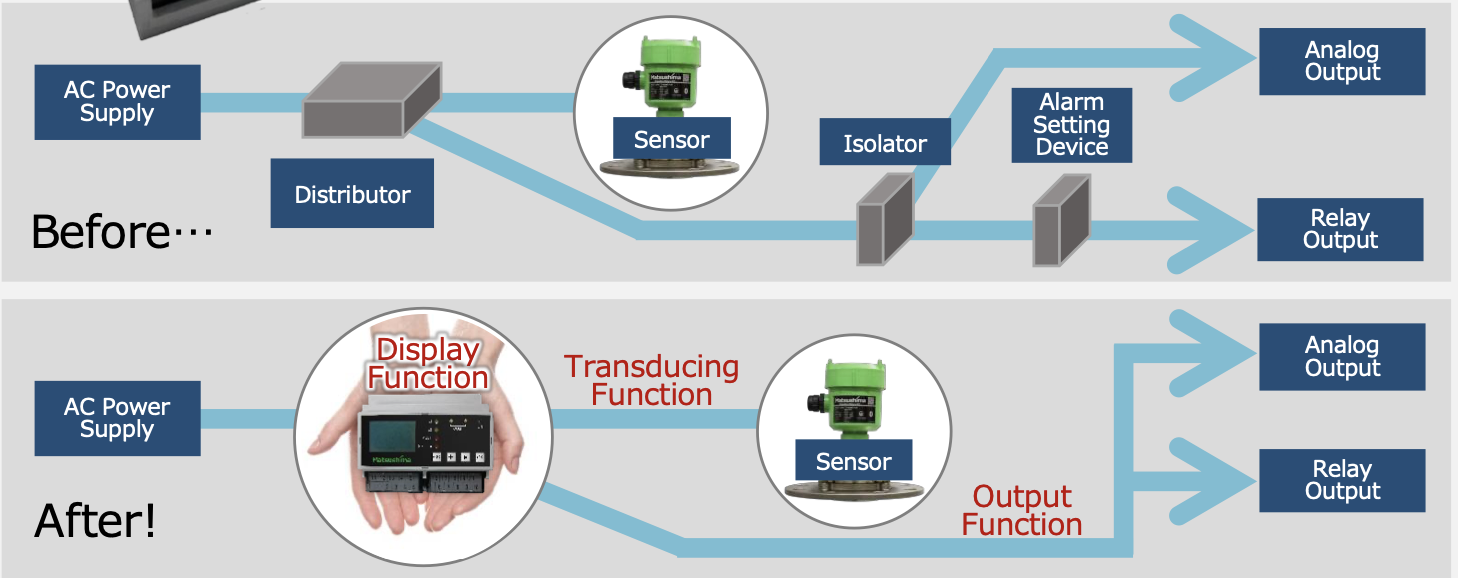

・Two contact outputs are equipped as a standard feature, so there is no need to prepare additional transducer.
・Analog output is equipped with current output and voltage output as a standard feature.
