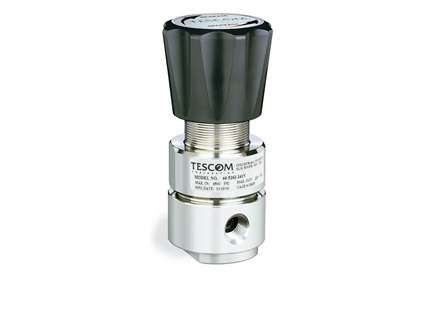

44-5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the ER5000 Electropneumatic Controller. Ideal for use in test equipment, calibration stands and production equipment

Maximum Inlet Pressure

400 and 3500 psig / 27.6 and 241 bar

Outlet Pressure Ranges

  1-25, 1-50, 2-100, 2-250, 5-500, 5-600 psig
  0.07-1.7, 0.07-3.4, 0.14-6.9, 0.14-17.2, 0.35-34.5, 0.35-41.4 bar

Material

Body, Piston: 316 Stainless Steel or Brass
Bonnet: 300 Series Stainless Steel or Brass
Seats: Vespel®
O-Ring: Viton®
Filter (40 micron): 316 Stainless Steel

Remaining Parts

300 Series Stainless Steel and Brass

Operating Temperature

-15°F to 200°F / -26°C to 93°C
For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.

Port Size & Type

1/4 NPTF

Flow Capacity

Cv = 0.06, 0.15

Load Type

Dome, Air

Weight (without gauges)

2 lbs / 0.9 kg
