![Asco - Van điện từ-2 Way: 2/2-ASCO Series 210](http://bizweb.dktcdn.net/100/332/095/products/1.jpg?v=1540717204513)

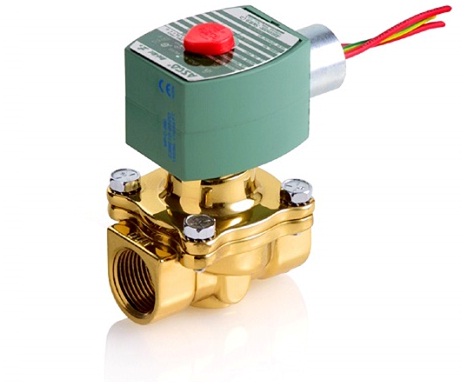

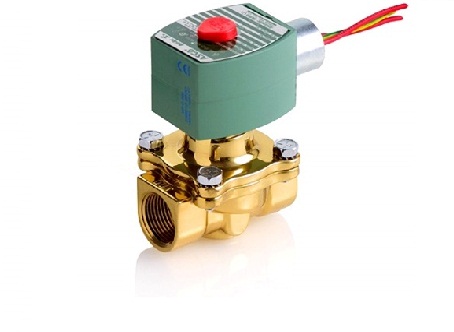

Asco - Van điện từ-2 Way: 2/2-ASCO Series 210
Van điện từ - 2 Way: 2/2 - ASCO Series 210
8210G100 120/60,110/50
Type:
Solenoid Valve
Body Material:
Brass
Media Type:
Air, Inert Gas;Water;Light Oil
Valve Actuation:
Solenoid
Voltage:
110 AC;120 AC
Max Ops Pressure(PSI):
90
Function:
2 way - 2/2 Normally Closed
Pipe Size:
2
Catalog Number:
8210G100 120/60,110/50
General Information:
Product Weight:
8.91 lb
Order Code :
20268
Shipping Weight :
9.00 lb
Kit Number :
304355
Listed In Catalog:
34
Operating Pressure Ratings :
PSI
Operating Air Pressure (Min-Max) :
5-150
Operating Water Pressure (Min-Max) :
5-125
Operating Oil Pressure (Min-Max):
5-90
Technical Information
Actuation Method :
Solenoid
Body Material :
Brass
Coil Class :
FT
Coil Number :
238210-032-D
I&M Pressure Vessel
I&M Solenoid
V_6583.pdf
V_6950_CH.pdf
V_6950_R8.pdf
Pipe or Port Size:
2
Max Ambient Temperature:
125.00 F
Min Ambient Temperature:
32.00 F
Max Fluid Temperature :
180.00 F
Min Fluid Temperature:
32.00 F
Mounting Bracket(s) :
OPTIONAL
Orifice Size:
1-3/4 in
Model Available:
8210G002 120 / 60,110 / 50
-------------------------------------
