Asco - Van điện từ-2 Way: 2/2-ASCO Series 223

Liên hệ Còn hàng

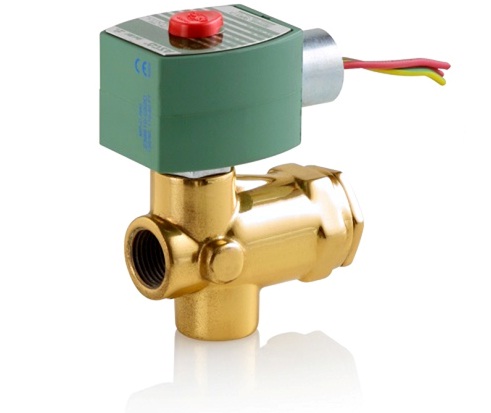

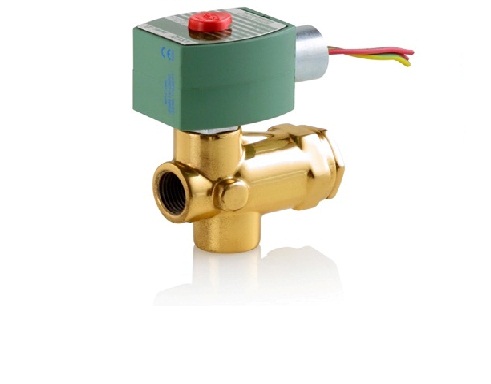

Van điện từ - 2 Way: 2/2 - ASCO Series 223

8210G100 120/60,110/50

Type

Solenoid Valve

Body Material:

Brass

Media Type

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

90

Function:

2 way - 2/2 Normally Closed

Pipe Size:

3/4

Catalog Number:

8223G005 120/60,110/50

General Information:

Product Weight:

3.59 lb

Order Code :

20362

Shipping Weight

4.70 lb

Kit Number

302316

Listed In Catalog:

34



Operating Pressure Ratings: PSI

Operating Air Pressure (Min-Max)

25-750

Operating Water Pressure (Min-Max)

25-750

Operating Oil Pressure (Min-Max)

25-750

Technical Information

Actuation Method

Solenoid

Body Material

Brass

Coil Class

FB

Coil Number

238610-132-D

I&M Pressure Vessel

V_5580_R4.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size

3/4

Max Ambient Temperature

125.00 F

Min Ambient Temperature

32.00 F

Max Fluid Temperature

200.00 F

Min Fluid Temperature

32.00 F

Orifice Size

3/4 in



-------------------------------------
