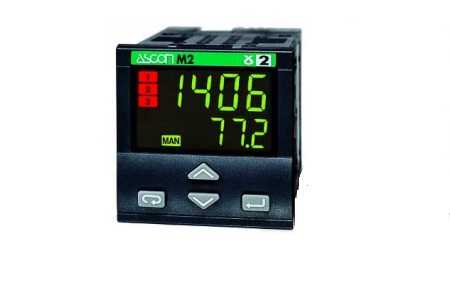

Điều Khiển Nhiệt Độ M2

1/16 DIN temperature controller for hot runners

- Panel mount controller: 48x48 mm
- 1 Configurable input, 1 C/T input and 1 digital input
- Up to 3 Digital outputs
- PID single action or double action (Heat/Cool)
- Setpoint change from digital input (optional)
- Outputs at safety value in case of error
- 2 display lines, 4 digits each, green colour

Process inputs:

1 Universal input

- Thermocouples: J, K, L, S, T
- RTD: Pt100
- Voltage (mV): 0/10...50 mV
- Current (mA): 0/4...20 mA (with 2.5 Ω shunt resistor)
- Custom linearisation and IR probes (J.K type)
Accuracy : 0.25% ±1 digit (probes) or 0.1% ±1 digit (mA or mV)

Auxiliary input(Optional)

- 1 current transformer input for load monitoring (optional) 50 or 100 mA jumper selectable

1 digital input

- NPN
- TTL
- Free Voltage

Keyboard

Mechanical: 4 multifunction keys

Process outputs

Up to 3 Digital outputs

OUT1
- RELAY SPST-NO, 2A/250Vac
OUT2
- RELAY SPST-NO, 2A/250Vac
- SSR Drive 0...5Vdc, ±20%, 30 mA Max (Note 1)
OUT3
- RELAY SPST-NO, 2A/250Vac

Power supply:

- 24VDC/VAC
- 100… 240 Vac (50/60 Hz)

Functions

- ON/OFF control
- PID single action or double action (Heat/Cool)
- Setpoint change from digital input (optional)
- Outputs at safety value in case of error

Autotuning

- Autotuning with natural frequency
- Autotuning with step response
- Adaptive Autotuning

Alarms

- Up to 2 configurable alarms

Communication and programming:

Interfaces

- APG2-DRSPC interface for simultaneous setpoint change of up to 48 controllers
- Easy to use front interface for configuration

Programming/configuration tools:

- Code selection

Installation

Mounting method: panel mount
Case dimensions: 48 x 48 mm (1/16 DIN)

Connections
