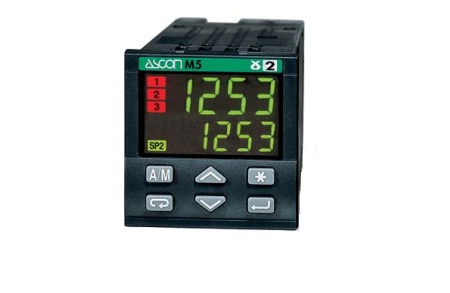

Ascon - Điều Khiển Nhiệt Độ M5
Hãng Sản Xuất: Ascon
Xuất Xứ: Italy
Tình Trạng: Còn Hàng
Điều Khiển Nhiệt Độ M5
1/16 DIN Process controller setpoint programmer
- Panel mount controller 48x48 mm
- 1 Configurable input, 1 auxiliary input and 2 digital inputs
- Up to 3 Digital outputs and 1 analogue output
- PID single action or double action (Heat/Cool)
- Floating servomotor
- 16 segment programmer (optional)
- RS 485 ModBus RTU port (optional)
- 2 display lines, 4 digits each, green colour
Process inputs:
1 Universal input
- Thermocouples: J, K, L, S, T, R
- RTD: Pt100
- Voltage (V): 0/1...5 V, 0...10V
- Voltage (mV): 0/10...50 mV
- Current (mA): 0/4...20 mA
- Custom linearisation and IR probes (J.K type)
Accuracy : 0.25% ±1 digit (probes) or 0.1% ±1 digit (mA or mV)
Auxiliary input(Optional)
- Voltage (V): 0/1...5 V, 0...10V
- Current (mA): 0/4...20 mA
- 1 current transformer input for load monitoring (optional) 50 or 100 mA jumper selectable
- Potentiometer: 100Ω ... 10 kΩ
2 digital inputs
- Free Voltage
Keyboard
Mechanical: 6 multifunction keys
Process outputs
1 High level analogue output(optional):
- For process control
- For PV/SP retransmission
- Current (mA): 0/4...20 mA
Up to 3 Digital outputs
OUT1
- RELAY SPST-NO, 2A/250Vac
- TRIAC 1A 250 VAC
OUT2
- RELAY SPST-NO, 2A/250Vac
- TRIAC 1A 250 VAC
OUT3
- RELAY SPST-NO, 2A/250Vac
- TRIAC 1A 250 VAC
Power supply:
- 24VDC/VAC
- 100… 240 Vac (50/60 Hz)
Transmitter power supply: 18 Vdc ±20%, 30 mA Max
Functions
- ON/OFF control
- PID single action or double action (Heat/Cool)
- Floating servomotor
- Auto/Man station with bumpless action
- Remote setpoint
- 2 memorized setpoints
- 16 segment programmer (optional)
Autotuning
- Autotuning with natural frequency
- Autotuning with step response
- Adaptive Autotuning
Alarms
- Up to 4 configurable alarms
Communication and programming:
Interfaces
- RS 485 port with ModBus RTU and J-bus (slave) protocols (optional)
Programming/configuration tools:
- Fast View for immediate and easy access to 10 selectable parameters
- Easy to use front interface for configuration
- Configuration software available for PC
Installation
Mounting method: panel mount
Case dimensions: 48 x 48 mm (1/16 DIN)
Connections
Signals connection
18 poles 5.5 mm² screw terminals block
Protection factor: IP 65 front protection
Display and indicators
2 Display lines, 4 digits (PV) h: 10 mm, 4 digits (SP/OP) h 8 mm, green colour
3 LED Bargraph + 2 Alarm and 1 Transmission LEDs
Connectable to:
- SCADA for monitoring, traceability and remote management
- DX and DY gateways for remote monitoring
