CURRENT LOOP SUPPLY Series M2DY

CURRENT LOOP SUPPLY

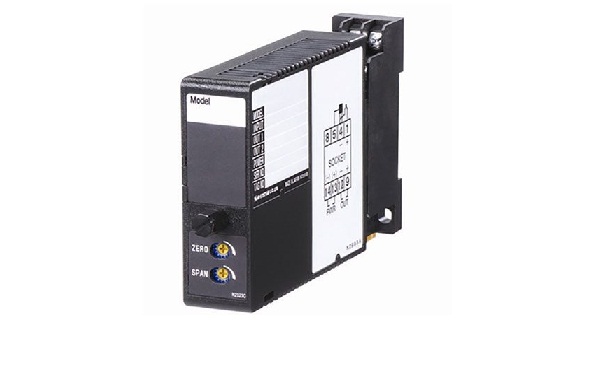

Model: M2DY

CURRENT LOOP SUPPLY

Model: M2DY - 24A - M

Functions & Features
• Powers a 4 – 20 mA DC current loop
• Shortcircuit protection
• Applicable to smart transmitters
Typical Applications
• Various 2-wire transmitters

MODEL: M2DY–24[1]–[2][3]

SUPPLY OUTPUT
24: 24 V DC
INPUT
Current
4 – 20 mA DC (Input resistance 300 Ω)

[1] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[2] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)

[3] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)
