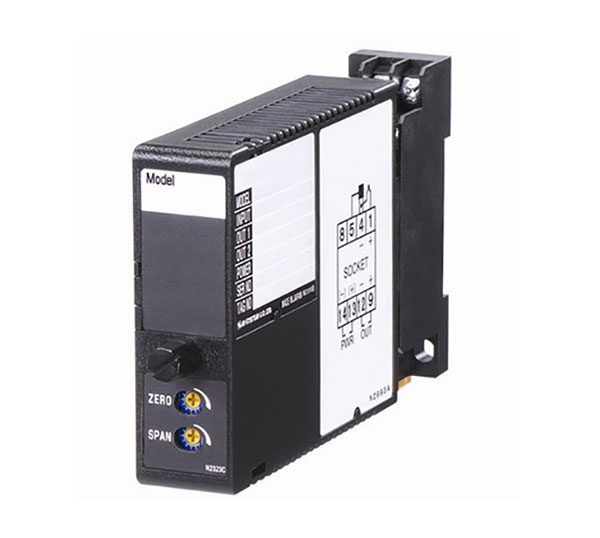

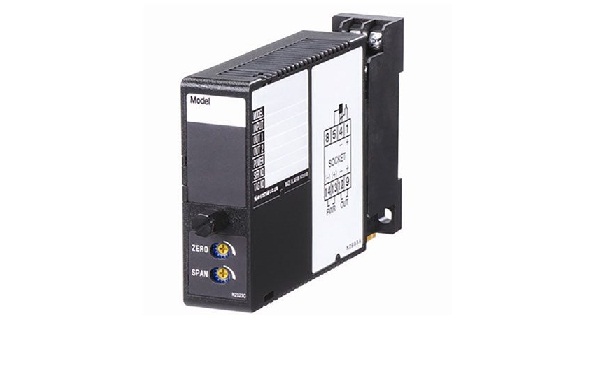

RTD TRANSMITTER Series M2RS

RTD TRANSMITTER

Series M2RS

RTD TRANSMITTER

M2RS - 3A - M

Functions & Features
• Accepts direct input from an RTD
• Linearization
• Burnout
• “Active bridge” circuit containing two constant current
sources allows large leadwire resistances up to 200 Ω
• Fast response type available

Typical Applications

• Long distance transmission between the RTD and the
transmitter
• Combination with intrinsic safety barriers


MODEL: M2RS–[1][2]–[3][4]

[1] INPUT RTD (2- or 3-wire)
3: Pt 100 (JIS'89)
(Usable range: -200 to +650°C, -328 to +1202°F; min.span: 50°C, 90°F)

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Burnout

blank: Upscale burnout
/BL: Downscale burnout
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)
