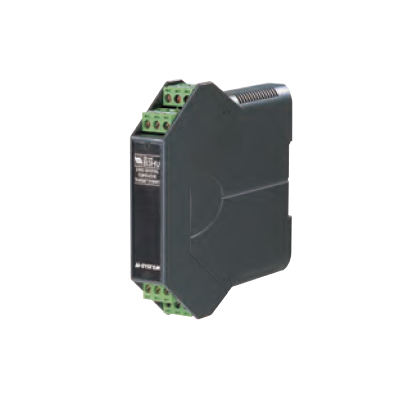

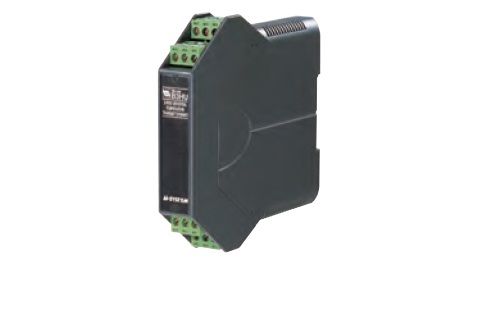

RTD TRANSMITTER Model: B3FR

RTD TRANSMITTER

Model: B3FR

RTD TRANSMITTER

Model: B3FR

Functions & Features
• Converts a RTD input into an isolated, linearized 4 – 20
mA DC signal
• DIP switch configurable input range
• Linearization and burnout
• Monitor terminals
• High-density mounting

MODEL: B3FR[1]

INPUT RTD (2- or 3-wire)
Pt 100 (JIS ’97, IEC)
Ni 120
Cu 10 @ 25°C
Note: Consult M-System for 2-wire RTD

[1] OPTIONS (multiple selections)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
