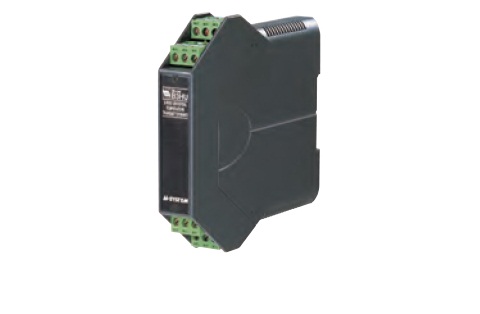

Thiết bị chuyển đổi tín hiệu, Model: B3FT-1

THERMOCOUPLE TRANSMITTER
(field-configurable)

Functions & Features
• Converts a thermocouple input into an isolated, linearized 4 – 20 mA DC signal
• DIP switch configurable input range
• Cold junction compensation, linearization and burnout
• Monitor terminals
• High-density mounting

MODEL: B3FT–[1][2]

ORDERING INFORMATION
• Code number: B3FT-[1][2]
Specify a code from below for each [1] and [2].
  (e.g. B3FT-1/UL/Q)
• Input range (e.g. J 0 – 400°C)
• If you need the transmitter to be calibrated to a specific range, please specify when ordering.
Non-specified orders will be shipped at default factory setting (K 0 – 300°C or E 0 – 250°C).
• Specify the specification for option code /Q
  (e.g. /C01)

[1] INPUT THERMOCOUPLE
1: K (CA), J (IC), T (CC)
2: E (CRC), R, N

[2] OPTIONS (multiple selections)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
